Moisture Problems in Old Houses: What to Diagnose Before Waterproofing, Insulating, or Rebuilding
Peeling plaster, efflorescence, damp masonry, rot, condensation, and a musty smell are clues, not diagnoses. More than one source can be active at the same time. The most economical first step is often to record when and where the symptom appears, trace water and air paths, and correct the source before covering the material.
Use timing and location as evidence
Record where the symptom appears, whether it follows rain, snowmelt, plumbing use, temperature change, or occupancy, and whether it is seasonal. Note staining, efflorescence, peeling paint, musty odor, condensation, rot, salt, and changes after a repair. A single damp patch can be affected by more than one source, and the visible damage may be farther from the entry point.

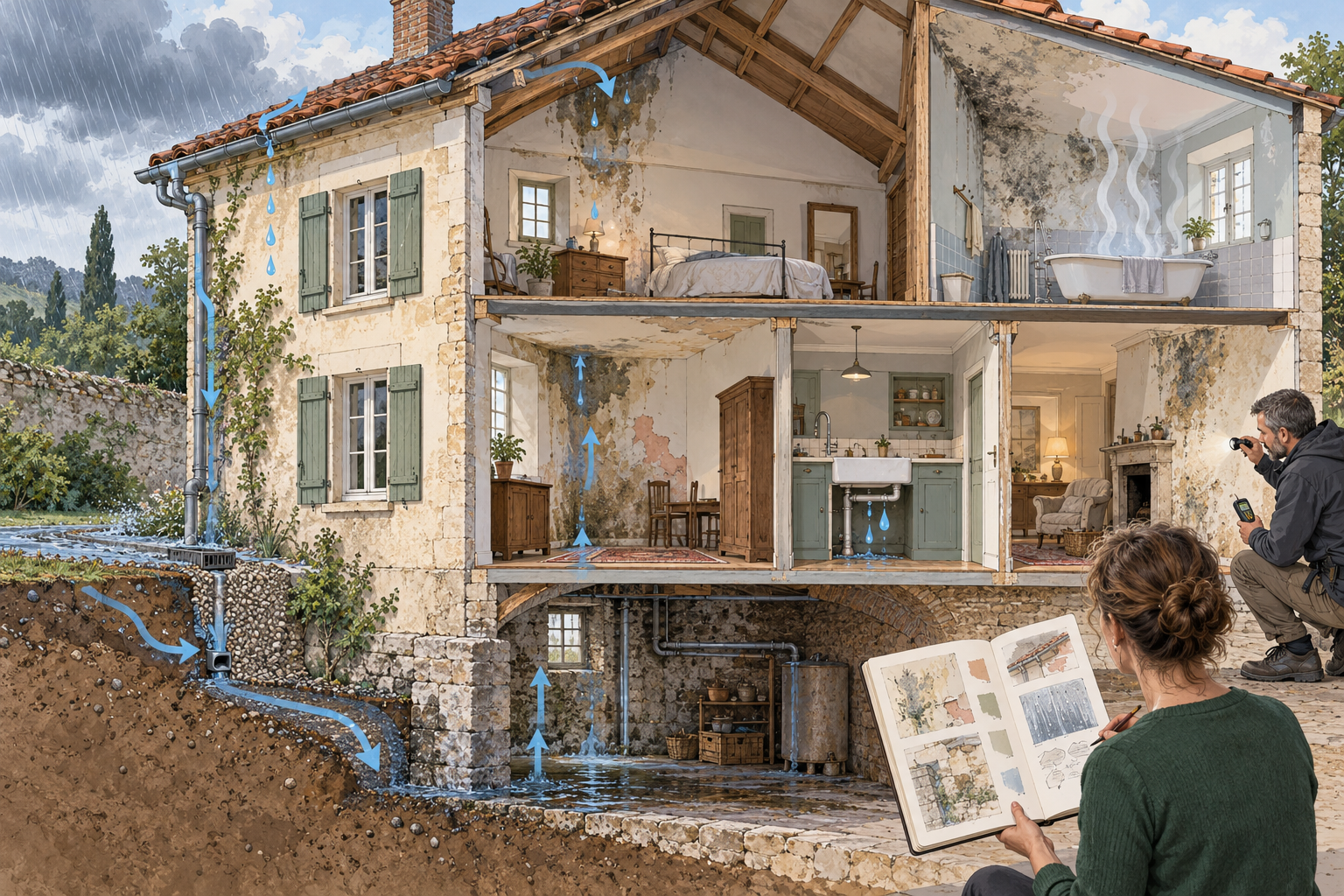

Organize the investigation by source family:
- roof, flashing, gutter, downspout, and wall exposure;
- site grading, foundation drainage, groundwater, and capillary movement;
- plumbing, heating, condensate, and appliance leaks;
- masonry absorption, failed joints, and incompatible coatings;
- indoor humidity, ventilation, air leakage, and cold surfaces;
- structural movement or settlement that opens paths for water.
The purpose is not to collect every possible cause. It is to connect the observation to a test or professional inspection that can change the scope.
Do not price the finish before the source
Waterproof paint, interior sealers, insulation, repointing, plaster replacement, and mold treatment may all be reasonable in a defined situation, but none should be treated as a universal response to dampness. A coating can hide a wall while leaving water pressure or movement unchanged. Insulation can alter drying and conceal a vulnerable assembly. New plaster can fail again if the moisture source remains active.
First decide whether the priority is source correction, drying, structural evaluation, material conservation, health remediation, or some combination. If there is sewage contamination, extensive mold, structural movement, water near energized equipment, or suspected hazardous material, use the appropriate qualified professional and do not treat this as a cosmetic project.
Build a diagnostic scope
Ask for the observation, suspected source, test method, limits of the diagnosis, and the next decision if the hypothesis is wrong. A useful moisture assessment may involve site and roof review, plumbing tests, humidity or temperature measurements, visual opening, drainage review, or monitoring over time. The correct scope depends on the building and symptom; no single test establishes every source.
Price the diagnostic work separately from repairs. Include access, temporary protection, small openings and their restoration, laboratory or specialist analysis where applicable, drying, and follow-up. This makes a modest investigation comparable with a large waterproofing proposal and reduces the risk of paying for an intervention that was never tied to evidence.
Compare the full consequence
Once the source is identified, compare the repair with the damage it is preventing. Include the affected roof, gutter, foundation, pipe, masonry, insulation, plaster, flooring, framing, finishes, and monitoring. If an old-house material is significant, add documentation and compatible restoration. If the diagnosis remains uncertain, keep the work staged and state what observation will permit the next phase.
Turn observations into testable questions
Write each symptom as an observation rather than a conclusion: “staining appears after wind-driven rain at the upper corner,” “odor increases when the basement is closed,” or “plaster softens beside the bath.” Then ask what evidence would support or weaken the suspected source. This keeps a contractor from pricing a favorite treatment before the building has been understood.
The question should also name the decision it will change. If a roof inspection finds failed flashing, the next step may be exterior repair and drying. If indoor humidity is the stronger explanation, the scope may shift toward ventilation or moisture management. If movement or concealed decay is present, a qualified structural or building assessment may take priority over finishes. These are planning branches, not remote diagnoses.
Compare diagnostic paths by consequence
The cheapest-looking inspection is not always the smallest project. Compare a visual review, targeted testing, a small planned opening, and monitoring by the question each can answer, the damage each causes, and the restoration each requires. A limited opening may be worthwhile when it can distinguish two very different repair scopes; monitoring may be better when timing or weather is essential to the question.
Ask what will be recorded, who interprets the result, how uncertain the conclusion remains, and what happens if the hypothesis is wrong. Include the cost of returning to make good an opening, protect occupants, dry materials, or obtain specialist analysis. A diagnostic report that states its limits is more useful than a confident label unsupported by a test.
Know when to stop and escalate
Pause cosmetic work when there is active water near energized equipment, sewage contamination, extensive mold, suspected hazardous material, structural movement, or a symptom that is worsening despite source correction. Use the professional appropriate to that risk and follow current local requirements. The objective is not to order every possible test; it is to avoid closing a building assembly while a consequential uncertainty remains.
Make the result useful to the next trade
The diagnostic handoff should include photographs, locations, dates, weather or occupancy context, measurements or test results, the suspected source, limits, and the recommended next decision. State whether the evidence supports source correction, drying, structural review, material conservation, health remediation, or continued monitoring. A later contractor can then price the defined work without repeating every exploratory step.
Separate confirmed conditions from working hypotheses. If an opening was made, record its size, material, temporary protection, and restoration. If monitoring is continuing, state the observation period and the threshold for escalation. This preserves the value of a cautious diagnosis without presenting uncertainty as a completed repair plan.
Compare doing less with doing the wrong thing
Leaving a sound or stable finish in place while evidence is gathered may be a responsible phase. Covering it with a sealer, insulation, new plaster, or waterproofing system without understanding the source can make later diagnosis harder and add restoration cost. The no-action option should therefore include what will be monitored, who reviews it, and what change would end the waiting period.
Write the investigation brief
Give the professional a simple record of the building, the symptom, timing, recent work, occupancy, known plumbing or heating changes, and the finishes or features that must be protected. Ask what the investigation can establish, what it cannot establish, and what access or opening it requires. This allows the owner to compare a diagnostic scope with a repair proposal without confusing a hypothesis with a finding.
The brief should end with a decision tree: if the suspected source is confirmed, price the next correction; if it is not, identify the next test or professional; if the condition is urgent, state the immediate protection or occupancy decision. A useful investigation does not need to answer every building question, but it should answer the question that controls the next safe phase.
Make the investigation proportionate
Not every stain requires a whole-building study, and not every concealed moisture condition is suitable for a quick visual opinion. Match the effort to the consequence of being wrong. A low-consequence finish decision may begin with observation and monitoring; a condition affecting structure, health, energized equipment, or a significant assembly needs the appropriate qualified assessment before it is covered.
Ask the professional to state what the chosen level of investigation can rule in, what it cannot rule out, and when a larger opening or specialist is needed. That makes a modest diagnostic budget defensible and keeps a broad repair allowance from substituting for evidence.
Make the handoff actionable
Record the symptom, timing, test or observation, suspected source, limits, next decision, and professional responsible for escalation. If the owner chooses monitoring or defers a repair, state the review trigger. This keeps a cautious diagnosis useful without turning it into an unsupported guarantee.
Make monitoring part of the decision
If the owner defers intervention, state what will be observed, when it will be reviewed, and what change requires qualified escalation. A no-action phase is only useful when its boundary and next decision are visible.
Build a local estimate
No reliable national USD or CAD range applies to this specialized historic-home work. Request a dated local proposal that separates investigation, access, protection, materials, specialist labor, permits or review, restoration, and future maintenance. State the condition, area, and assumptions covered by each option.
Compare complete scopes in the market where the work will occur. Keep confirmed work, allowances, and owner-selected upgrades separate, and do not convert a price mechanically between U.S. and Canadian markets.
