Historic Timber Frame Repair: When to Reinforce, Sister, Patch, or Replace Old Structural Wood
Historic structural wood should not be retained blindly, and it should not be removed simply because it is old. The responsible choice depends on section loss, moisture, insects, connection condition, loads, movement, previous alterations, and the significance of the frame. Preservation guidance can inform the goal; it cannot replace an engineer’s evaluation.
Identify the framing system before choosing a method
An old house may contain heavy timber, post-and-beam framing, conventional light framing, repairs from several eras, or a combination. Identify what the member does, how it bears, what connects to it, and whether the apparent damage is active. Moisture, insects, overloading, movement, altered openings, poor connections, and long-term settlement can produce different repair needs.
Preservation principles favor retaining sound significant fabric where feasible, but they do not establish that a damaged member is safe. A structural engineer or appropriately qualified professional must evaluate loads, section loss, movement, temporary support, and the effect of any proposed change. Do not use a description such as “old timber” as a substitute for a condition assessment.

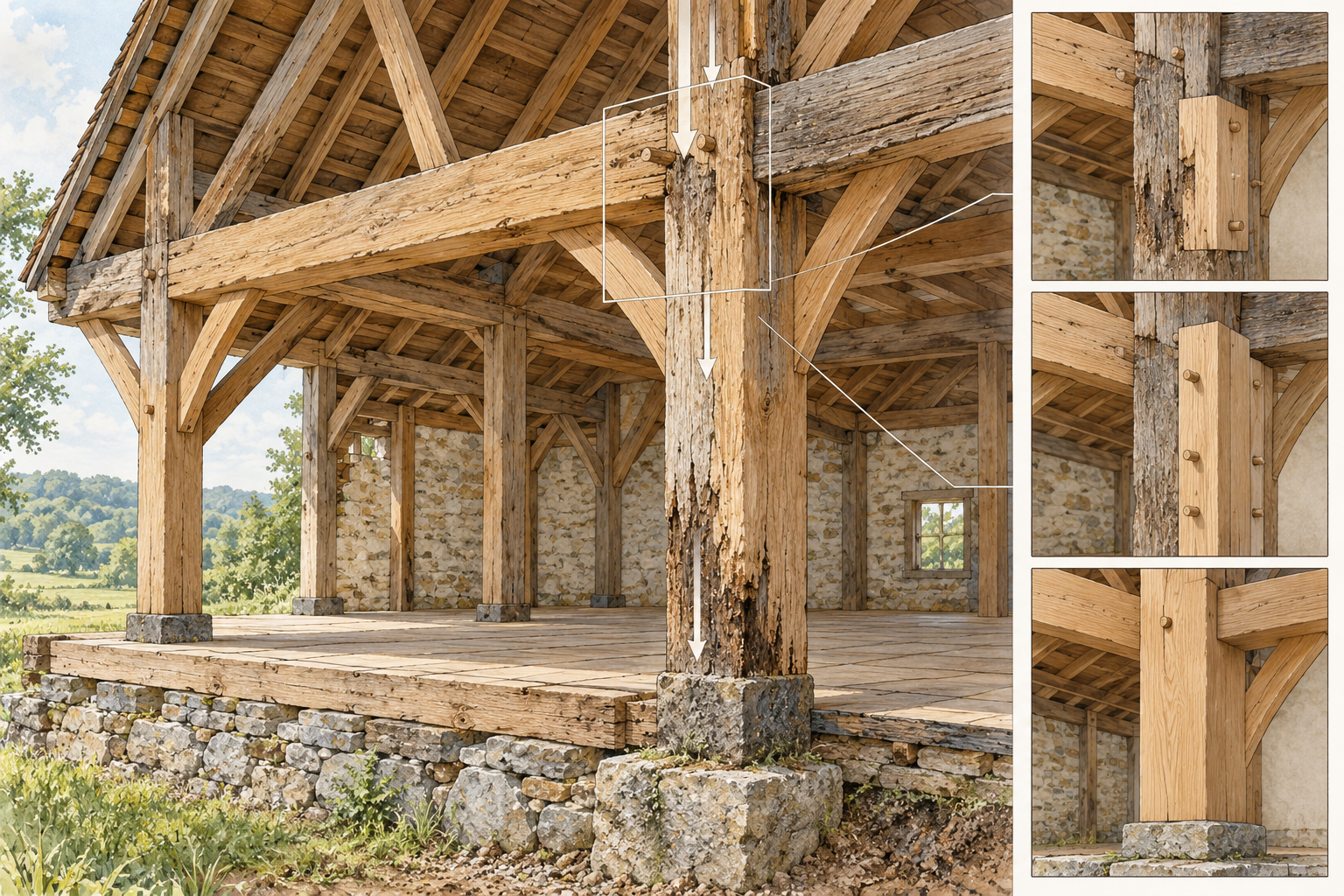

Understand the repair choices
Patch or localized repair can retain most of an original member when damage is limited and the cause is controlled. It may require custom carpentry, careful matching, access, and documentation. Reinforcement or sistering adds new material or support while retaining the existing member, but the connection and load transfer must be designed. Traditional joinery or scarf-style repair can preserve appearance and material but is specialist work, not a homeowner procedure. Replacement may be necessary when loss, movement, or a changed load makes retention impractical.
Each path has consequences beyond the timber itself. Access may require removing plaster, flooring, masonry, trim, or exterior cladding. Temporary support can affect occupancy and adjacent finishes. Moisture correction, pest work, or drainage may be required before a repair can remain sound. A replacement that looks simple may also change connection geometry, fire protection, or the appearance of a significant interior.
Make the scope and risk visible
Request a condition map showing sound, uncertain, and failed areas. Ask for the assumed loads and support plan in the professional design, not an informal promise that a member can be “sistered.” Separate engineering, temporary support, demolition, preservation carpentry, material sourcing, finish restoration, and inspection in the estimate.
Custom timber work can involve patterning, lifting, handling, shop fabrication, minimum access, and weather protection. Include investigation of concealed ends and connections, which may be more consequential than the exposed face. If insects or decay are suspected, identify the specialist responsible for confirming the cause and the boundary of treatment.
Coordinate preservation and safety
Document significant marks, joinery, tool work, and finishes before removal or alteration. Confirm any heritage review when the member is protected or visible. A preservation specialist can advise on compatible repair and documentation; an engineer owns structural adequacy; qualified trades own their regulated work. These roles should be coordinated rather than collapsed into one vague contractor allowance.
Separate preservation value from structural adequacy
An original timber can be important even when it is not carrying the load in the way a later alteration assumes. Conversely, a member can look historic without being significant enough to justify a risky retention strategy. Document the member, connection, tool marks, finish, location, and relationship to the framing before choosing between repair and replacement. Then have the structural professional evaluate what the member actually does.
This prevents two opposite errors: removing sound fabric because a standard replacement is easier, or retaining a damaged member without resolving load, movement, or temporary-support questions. The appropriate outcome may be a localized repair, reinforcement designed around the existing member, a carefully documented replacement, or a larger correction to the cause of deterioration.
Budget the connections and temporary work
The visible timber is often only part of the risk. Concealed ends, bearing pockets, joints, fasteners, floor connections, roof loads, and altered openings may require investigation. Temporary support, access, dust control, floor protection, selective removal, storage, and reinstallation can be substantial. Include insect or decay investigation when the cause is uncertain and keep treatment of the cause separate from the structural repair.
Ask the engineer and contractor to identify assumptions about loads, access, occupancy, and adjacent finishes. A repair price based on an exposed face is not comparable with a scope that includes opening the connection and restoring the room afterward. If the owner needs a visual match, include patterning, material sourcing, hand work, finish, and documentation as separate items.
Know when a phased assessment is better
If the building is occupied or the full frame is concealed, begin with documentation and a condition survey. A limited opening can answer a specific question, but it should be planned so the resulting patch and any temporary support are included. If the opening reveals active moisture, insects, movement, or a different load path, stop and revise the professional scope before closing it.
The final decision should state what was retained, what was repaired or replaced, what cause was corrected, what limitations remain, and how the work will be inspected and maintained. Historic character is part of the decision, not a substitute for engineering.
Coordinate the sequence with finishes
Before temporary support, opening, lifting, or member repair, identify the plaster, flooring, masonry, trim, roofing, and utilities that may be affected. Include protection, selective removal, storage, reinstallation, and finish repair. A structural repair that leaves the load path sound but the occupied room unfinished is not a complete owner budget.
Ask the engineer, preservation specialist, and contractor to agree on the points at which the existing condition is rechecked. If concealed damage, moisture, insects, movement, or a different connection appears, stop at that decision gate rather than extending the repair by assumption. Keep the change authorization with the appropriate professional.
Set a maintenance record
Document the repaired or replaced member, the cause of deterioration, the retained details, access points, inspection recommendations, and any limitations in the design. Record moisture or pest corrections separately from structural work. Future owners need to know which original material remains and which condition would warrant another professional assessment.
Compare retain, reinforce, and replace at the same design level
Do not compare a fully developed replacement price with a vague “repair if possible” allowance. For each pathway, show the assessment, temporary support, access, connection or load-transfer design, carpentry, material sourcing, inspection, and finish restoration. State what remains uncertain and what discovery would change the scope.
Retention may offer more historic material but require specialist work and careful access. Reinforcement may preserve the visible member while introducing new connections or maintenance conditions. Replacement may simplify a technical problem but remove original fabric and change the appearance or geometry. The owner can make that tradeoff only when all three consequences are visible.
Protect the decision record
Keep the condition map, photographs, professional design, approved changes, retained-material notes, and closeout inspection together. Record moisture or pest corrections and any areas not opened. That history helps a later professional distinguish an original irregularity from a repaired condition and reduces the chance of unnecessary removal.
Confirm the end condition
The owner handoff should identify what carries the load, what original fabric remains, what was replaced, what causes were corrected, and what professional inspection or maintenance is expected. If the design leaves an uncertain area for later investigation, mark it rather than allowing the finished surface to imply that the entire frame was assessed.
Make future access part of the repair
State how the repaired member, connection, and adjacent finishes can be inspected later. If the work conceals an original detail or a new connection, keep photographs and locations in the closeout. Future access should not depend on guessing where a previous structural intervention was made.
Record the structural handoff
Keep the professional design, repaired member, retained fabric, concealed connection photographs, deferred conditions, and maintenance trigger together. Future work should begin with that record and a new qualified assessment where the condition has changed.
Build a local estimate
No reliable national USD or CAD range applies to this specialized historic-home work. Request a dated local proposal that separates investigation, access, protection, materials, specialist labor, permits or review, restoration, and future maintenance. State the condition, area, and assumptions covered by each option.
Compare complete scopes in the market where the work will occur. Keep confirmed work, allowances, and owner-selected upgrades separate, and do not convert a price mechanically between U.S. and Canadian markets.
