Radiant Floor Heating Cost: Retrofit and Replacement Economics
Illustrative planning scenario (U.S. dollars, September 2026)
This is a worked retrofit example, not a market average: assume a 150-square-foot room, $12 per square foot for the heating assembly, $1,000 for controls and manifold work, and $1,500 for access and finish disruption. The illustrative project is $4,300 before a broader floor remodel; actual access and system type control the result.
Decide whether the remodel timing changes the answer
Radiant floors are easier to justify when flooring is already being removed, a room needs a new heat-distribution method, or several zones can share a compatible heat source. They are harder to justify when finishes are intact, only one small area is uncomfortable, or balancing, insulation, baseboard, radiator, or ductless work could solve the same problem with less access.
Ask for demolition, protection, tubing or cable, manifolds or controls, pumps or circuits, floor restoration, commissioning, and future failure access. Compare hydronic and electric operating assumptions and include the heat source. Comfort value can justify disruption, but a low tubing price does not represent the complete project.
Ask for demolition, protection, subfloor repair, leveling, tubing or element installation, insulation, manifold or controls, heat-source connection, floor finish, trim, doors, and cleanup. A radiant system can be inexpensive to specify but expensive to access and restore. Identify which finish costs are incremental to the heating work.
Request design temperature, heat-source and water or electrical assumptions, zones, controls, and compatibility. A room-only project may be more rational than a whole-home retrofit when access and disruption dominate.
Radiant-floor heating is primarily an access and construction decision, not just a heating-equipment purchase. Hydronic systems use tubing and a boiler or other heat source; electric systems use resistance elements or mats. New construction, an open floor, an underfloor retrofit, and a finished-floor retrofit can have radically different costs. The active evidence does not support one reliable universal price.
Choose the installation context first

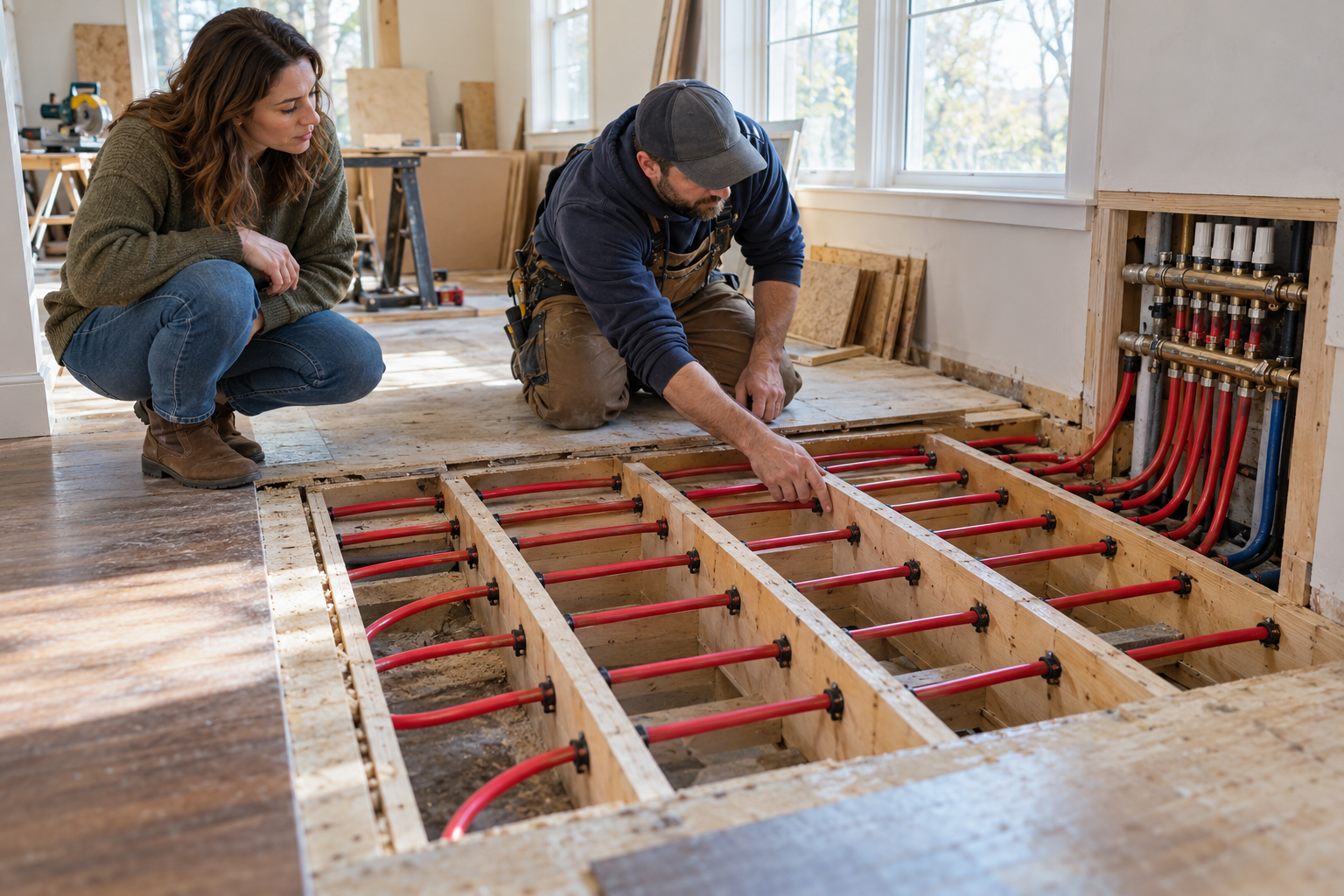

In new construction or a fully open floor, tubing, insulation, controls, and finish can be coordinated before the floor is closed. An underfloor retrofit may avoid removing the finish but can be limited by access, joist layout, insulation, and the desired output. A top-of-floor or finished-floor retrofit may require demolition, leveling, doors, trim, and replacement of the floor assembly.
If the floor work is the dominant project, the remodel, interior-finish, and demolition scopes should carry their own costs. Keep the heating-distribution decision visible inside that larger budget.
Treat access as part of the heating price
Hydronic and electric radiant systems can both become construction projects when floors, subfloors, ceilings, or finished surfaces must be opened. Include demolition, protection, disposal, restoration, controls, zones, wiring or piping, manifolds, pumps, and future access. A radiant quote that prices only tubing or cable is not comparable with a usable installed system.
Radiant floors can be attractive when a remodel already exposes the floor or when comfort and room-specific heat distribution matter. They are harder to justify when the floor is sound, only one small area is uncomfortable, or a simpler baseboard, radiator, ductless, insulation, or balancing correction addresses the same need with less disruption.
Hydronic radiant floors can connect to an existing boiler, condensing boiler, heat pump, or other heat source subject to design and product compatibility. The source, mixing or control arrangement, pumps, manifold, tubing, and zones affect the project. Electric radiant floors can be simpler in a room but still require suitable electrical capacity, controls, floor preparation, and operating-cost review.
Do not assume any floor covering, water temperature, or assembly will produce the desired output. Product and design documentation should govern compatibility.
Cost drivers
The major drivers are floor area, access, demolition, finish replacement, subfloor condition, insulation, tubing or element layout, manifold and controls, heat-source integration, zones, electrical or piping work, and testing. A room-by-room project may cost more per area because setup and finish interfaces are repeated.
Three scenarios
Open-floor installation: The floor is already being built or replaced, and heating can be coordinated with the assembly. This is usually the lowest access uncertainty.
Targeted retrofit: One or two rooms receive accessible underfloor or top-of-floor work. Local comfort may improve without converting the whole house, but finish and transition costs matter.
Whole-home retrofit: Multiple floors, zones, heat source, controls, and finish trades are coordinated. If remodeling, structural alteration, or access logistics dominate, price those scopes separately rather than calling the result a radiant-heating unit cost.
Compare alternatives
Radiant floors may be attractive for comfort or a particular renovation, but a ductless heat pump, baseboard, radiator, or ducted system can deliver heat with less floor disruption in some homes. Compare installed scope, controls, operating assumptions, repair access, future replacement, and ownership horizon.
Quote checklist
Request the assembly, floor access, finish and demolition assumptions, heat source, controls and zones, electrical or piping work, product compatibility, testing, warranty, and exclusions. If a boiler or heat pump must be replaced as part of the work, show that as a separate equipment decision. The right budget describes the floor that must be opened and restored as clearly as the heating product.
Compare retrofit economics with remodel timing
Radiant work is easier to justify when flooring is already being removed, the room needs a new heat-distribution method, or a hydronic source is available for several zones. It is harder to justify when finished floors must be removed only for heating, the heat source is near replacement, or a small comfort complaint could be addressed by balancing, insulation, or a local heater. Put demolition and floor restoration in the construction budget, not inside an artificially low heating allowance.
For hydronic systems, include manifolds, pumps, controls, tubing access, water treatment or service assumptions, and heat-source compatibility. For electric systems, include circuit and line-voltage control requirements and the operating-cost assumption. Ask what happens if a buried loop or cable fails and how the finished floor would be accessed. The comfort benefit can be real, but future repair disruption is part of the choice.
Separate heating cost from floor cost
Ask for demolition, furniture protection, subfloor repair, leveling, tubing or element installation, insulation, manifold or controls, heat-source connection, floor finish, trim, doors, and cleanup. A radiant system can be inexpensive to specify but expensive to access and restore. If a remodel would happen without the heating project, identify which costs are incremental.
Request the design temperature, heat-source and water or electrical assumptions, zones, controls, and product compatibility. If only one room needs comfort improvement, compare local radiant work with baseboard, radiator, or ductless equipment. Choose radiant floors when comfort and remodel context justify access and future repair cost.
