Structural engineering drawings turn a structural decision into calculations, details, and documents that others can review or build from. They are not the same product as a structural inspection report. A site visit may be the first step, but drawings generally require a defined design problem, adequate existing-condition information, and a professional willing to take responsibility for the work.
What the engineering scope can contain
Depending on the project, a package may include design criteria, calculations, framing plans, foundation details, connection details, sections, notes, specifications, and responses to review comments. A limited beam or wall alteration is a different scope from an addition with new foundations, roof loads, lateral forces, and coordination with architectural or MEP drawings.
“Stamped plans” or “sealed drawings” are not universal terms with one universal trigger. The responsible professional must be authorized in the relevant jurisdiction, and the authority decides which documents it accepts. Ask who will seal the work, what the seal signifies, and whether the design includes the full project or only one structural element.
U.S. cost context
Angi’s 2026 U.S. market guide reports broad examples of roughly $2,000–$5,000 for a home addition or major renovation drawing scope, with new-construction examples extending higher. It also reports plan revisions of about $300–$700 and a possible additional professional-engineer stamp charge of $500–$2,000. Those are market observations, not a price schedule; they may not include the site visit, permit coordination, taxes, or construction support. Do not convert them into a Canadian price.
For any quote, a scope-specific fixed fee is more useful than a number detached from deliverables. A small residential design may be hourly or flat-fee; larger work may be phased or tied to a defined budget. Ask how changes to the design or owner scope alter the fee.
What raises the fee?
- Unknown framing, foundation, or prior alterations.
- Multiple floors, irregular geometry, additions, or changes to load paths.
- Need for site measurements, probes, testing, or survey information.
- Wind, snow, seismic, flood, or other location-specific design conditions.
- Coordination with architect, designer, civil, MEP, or geotechnical work.
- Permit comments, alternate options, contractor substitutions, or owner changes.
- A professional seal, certification, construction observation, or response obligation.
Existing drawings can help, but they are not proof that the current building matches the records. An engineer may need to verify critical conditions before relying on them.
Inspection, design, and construction support are separate
An inspection report may recommend a solution without designing it. A design package may be permit-ready without containing every construction detail. Construction-phase visits may identify field questions but do not necessarily mean the engineer supervises the contractor’s means and methods. Put the boundary in writing.
Ask whether the proposal includes:
- Initial investigation and existing-condition verification.
- Calculations and design alternatives.
- Drawings at the level required by the local authority.
- Coordination with other plans.
- Professional seal or signature, if required and within the provider’s authorization.
- One or more review-comment responses.
- Construction questions, site visits, and as-built changes.
The permit office may require other documents too. A structural package is one component of an application, not a permit approval. Read permit drawings cost when you need to assemble the complete submission.
Price the engineering in stages

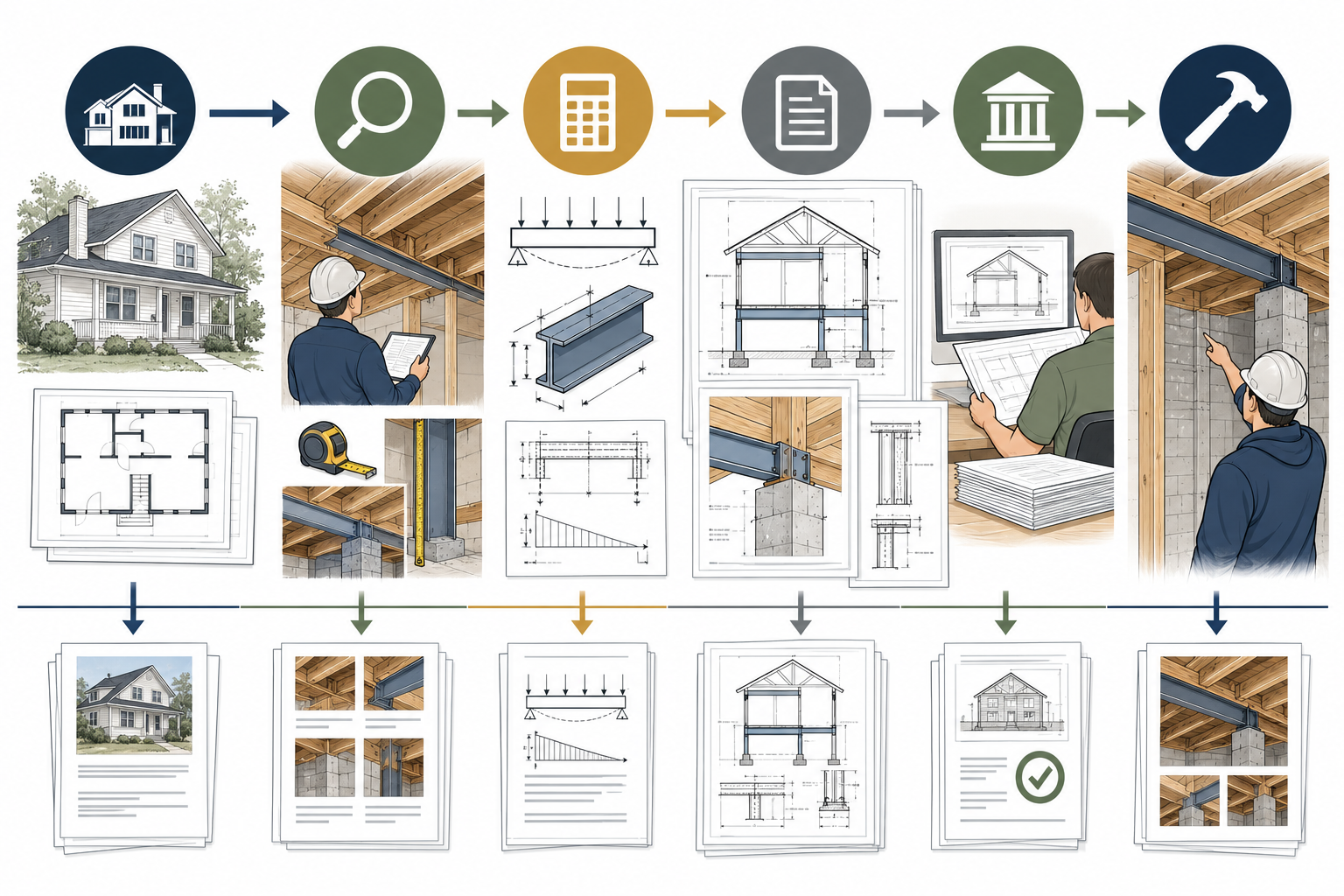

For a complicated alteration, a useful proposal may separate investigation, concept or options, calculations, permit documents, review responses, and construction support. The engineer can then explain which phase requires a decision before the next phase starts. A small, well-defined element may be priced as one scope, but a project with uncertain existing conditions is harder to price as a single fixed package.
Ask what information the fee assumes is available: measured dimensions, verified framing, foundation details, material grades, prior drawings, soil information, architectural plans, and project criteria. If those inputs are missing or inaccurate, the engineer may need to investigate, request testing, or revise the design. The quote should identify which of those tasks are included and what triggers an additional service.
Also ask the provider to identify what the authority will receive. A calculation package, sealed structural sheets, supporting details, and a response to a plan-review comment are related but separate deliverables. A permit reviewer may request clarification or another detail; a contractor may need more construction information; an owner may need a visit after a concealed condition is exposed. The initial fee does not necessarily include all of these.
Compare engineering scope, not just drawing count
One proposal may show fewer sheets because the engineer is designing only a beam or footing. Another may include a larger building area, lateral-system checks, connections, foundations, and coordination with other disciplines. Count of drawings is not a reliable price comparison. Compare the design problem, assumptions, calculations, site visits, consultant coordination, review rounds, and professional responsibility.
Ask each engineer to name the design criteria and exclusions. Confirm who provides architectural dimensions, whether the engineer relies on existing drawings, which loads or site conditions are included, and whether the professional will coordinate directly with the architect or contractor. Ask what changes in area, materials, structural layout, or field conditions would require a new fee.
Follow changes through the project
A structural design can affect architectural layout, mechanical routes, electrical work, ceiling height, foundation work, and construction sequence. If one element changes, ask who checks the connected documents. Do not assume that updating a beam detail automatically updates the rest of the permit set.
During construction, a contractor may discover framing that differs from the documents or propose a substitution. The engineer may need to review the actual condition, recalculate, and issue revised documents. That work is different from an ordinary clarification and should be approved before the contractor relies on the change. Ask whether the professional includes field questions, visits, and as-built review; otherwise budget them separately.
Keep the seal and the service scope clear
Confirm which professional will seal or sign each part and whether that person is authorized for the project location. A seal identifies professional responsibility under applicable local rules; it should not be marketed as a guarantee that every field condition is known or that the authority will approve the package without comments. The engineer should explain the scope and limitations in the proposal.
When comparing totals, keep engineering separate from architectural services, survey or geotechnical work, permit fees, and construction. If you already have an inspection report, send it with the drawings request and ask whether it contains adequate information for design. A report may identify a problem without supplying the measurements or investigation needed to design a solution.
Decide when design can be priced responsibly
An engineer can price more confidently when the architectural scope, site information, and existing structural conditions are clear. If they are not, ask whether a preliminary investigation or limited concept should come first. That staged approach can avoid pricing a complete drawing package around assumptions that later prove false.
For a wall opening, ask whether the proposal covers only the header or also bearings, posts, connections, and the path of loads below. For an addition, ask how the new foundation connects to existing construction and which site or soil inputs are assumed. For a roof change, ask who confirms existing framing, lateral resistance, and relevant local loading. These questions describe scope boundaries; the engineer must make the actual design decisions.
Compare the cost of alternatives
If the owner is choosing between two layouts, ask whether the fee includes comparing both structural concepts or only documenting the selected one. A design option that changes spans, support locations, or foundation work may affect architecture, mechanical routing, and contractor access. The smallest structural fee may not be the lowest total cost if it leaves coordination to a later phase.
Ask the engineer to identify what construction-stage questions are expected and which are outside the base fee. A field condition that differs from the plans may require new calculations; ordinary drawing clarification may be handled differently. Get approval for added work before the professional proceeds.
Check coordination before releasing the set
Before the engineer issues a final package, confirm that the architectural dimensions and design version are current. Ask how the engineer will identify assumptions and coordinate with other disciplines. If the architect moves an opening or the owner changes floor area after the calculation is complete, the structural design may no longer match the permit set.
Ask what file formats and revision identifiers are delivered and whether the engineer will answer questions from the building authority. Keep the calculation and drawings together so later professionals can tell which design they support.
How to compare proposals
Give each engineer the same sketches, photos, dimensions, prior reports, and target outcome. Ask what assumptions make the fee valid and what happens if those assumptions are wrong. Verify the professional’s local authorization and insurance questions through the appropriate professional body or contract advisor. If the condition appears unsafe, obtain property-specific professional advice rather than using this article to choose a structural solution.
