Permit drawings are documents prepared for a specific authority’s application and review. They may include architectural plans, site information, structural sheets, energy or MEP material, details, forms, and professional signatures where required. A concept sketch, a permit set, and construction-ready documents are not automatically the same purchase.
What determines the set
The authority, project type, existing conditions, location, building code, zoning, and professional responsibilities determine what must be submitted. British Columbia describes a typical package that can include property and servicing information, site plans or surveys, architectural drawings, zoning confirmation, trade or demolition permits, and professional assurances where applicable. Ontario guidance likewise says drawings, plans, other documents, and a fee may be required, with exact requirements controlled locally.
There is no universal sheet count. An interior alteration may need a focused plan and details. An addition can need existing and proposed plans, elevations, sections, structural design, energy information, site and drainage documents, and coordination with other approvals.

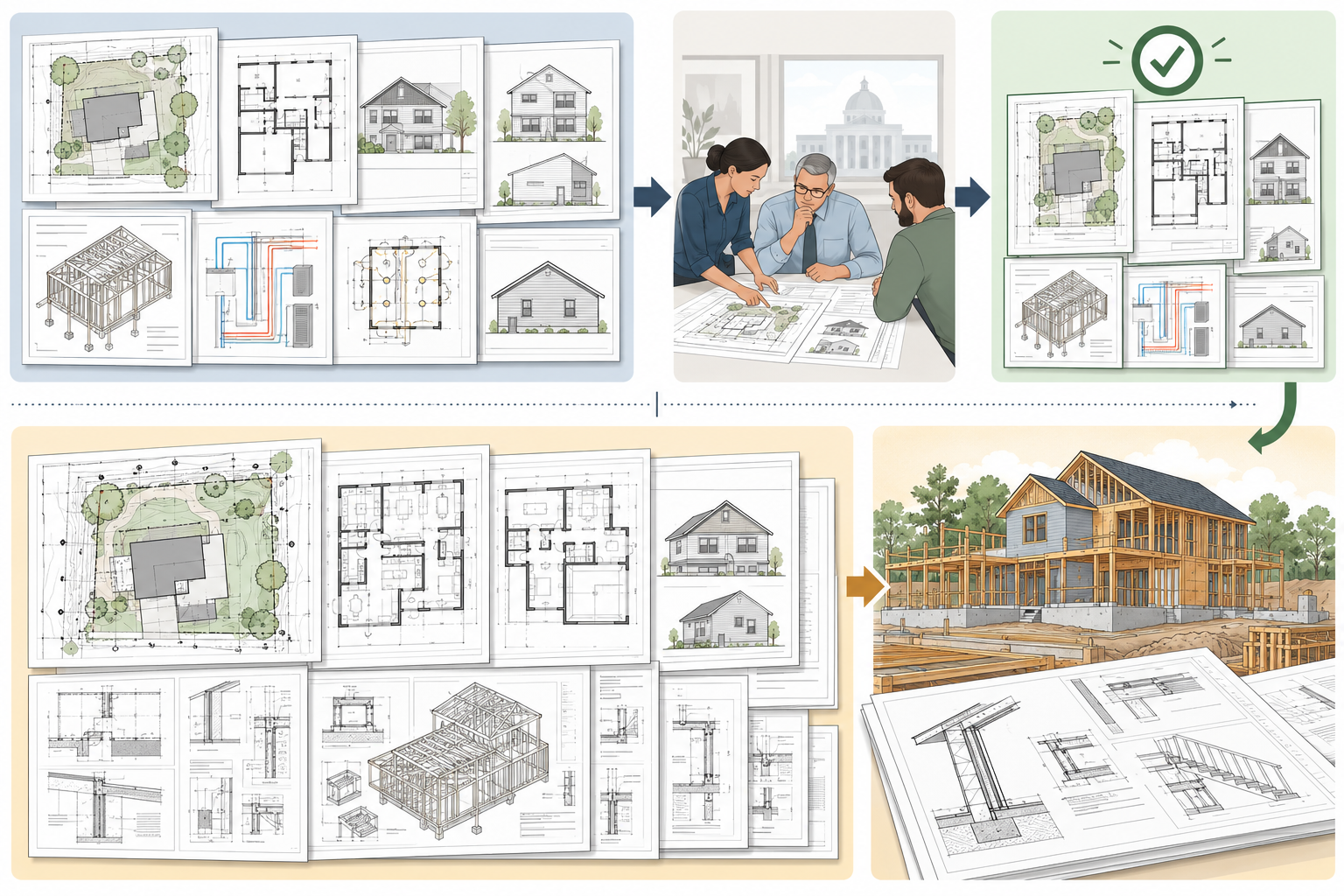

Define the drawing package by phase
The fee can be organized around a concept, permit submission, construction set, or some combination. A concept package helps the owner decide layout and scope. Permit documents answer the authority’s review questions. Construction documents give a contractor more detail for pricing and installation. Some providers combine stages; others stop after approval. Ask for the drawing list at each stage and a sample deliverable if you are unsure what “complete plans” means.
The cost can rise when the project begins with incomplete existing information, several design alternatives, site constraints, specialist work, or multiple rounds of owner decisions. It can also rise when the authority requests information not anticipated in the initial scope. Ask how the provider distinguishes routine correction responses from a new owner-requested design change or a new approval requirement.
Coordinate consultants and application responsibilities
A residential plan set may include multiple professionals. The architect or designer might organize the architectural sheets, while engineers prepare structural, MEP, civil, or geotechnical documents. The owner may have to hire a surveyor, energy consultant, or specialty provider. Ask who coordinates the files, resolves conflicts, and checks that all sheets show the same project version.
For each discipline, record the professional, deliverables, fee, signature or seal responsibility, application timing, and review-response scope. Ask whether the architect’s fee includes consultant coordination or only assembling the documents. If the contractor will use the permit set for pricing, ask whether the set contains enough dimensions, specifications, and allowances or whether a later construction package is planned.
Use a scope matrix to compare quotes
Compare proposals against the same list:
| Scope item | Questions for the provider |
|---|---|
| Existing conditions | Who measures and verifies the current house and site? |
| Design alternatives | How many options and owner review rounds are included? |
| Technical documents | Which engineering, energy, drainage, and product details are included? |
| Permit package | Which forms, signatures, submissions, and response rounds are included? |
| Construction information | What extra details, schedules, specifications, or coordination will the builder need? |
| File rights | What editable files are delivered and may another professional use them? |
A low fee may exclude site measurement, consultant coordination, or correction responses. A high fee may include construction documents or additional support not needed for your next step. Compare the total cost of reaching the intended decision, not one line labeled “plans.”
Plan for a changing scope
Ask what happens if the owner changes the layout, the site survey differs from the records, an engineer identifies a limitation, or the authority requests another approval. The provider should explain how additional services are proposed and approved before work begins. Ask how a pause or cancellation affects access to completed work and unused fees.
The permit package should be version-controlled. Each issue should identify its date and purpose so the authority, contractor, and consultants work from the same set. If drawings are revised after issuance, ask whether the authority must approve them before the changed work proceeds. A permit drawing fee does not include contractor change orders or guarantee a permit decision.
Permit-ready is not construction-ready
A permit authority needs enough information to review compliance. A contractor may need additional dimensions, specifications, details, schedules, coordination, and installation information to price and build the work. Ask the designer to state the intended use of the documents. Do not assume “permit-ready” means a fixed-price bid or a complete construction package.
Cost drivers
Permit-drawing cost rises with design complexity, existing-condition uncertainty, survey and engineering inputs, number of disciplines, consultant coordination, professional seals, code and zoning research, revisions, authority comments, and the level of construction detail. A catalogue or stock plan can reduce concept work but may still require site-specific adaptation. CMHC explicitly states that catalogue designs are not automatically pre-approved and must be adapted by locally qualified professionals before submission.
Public market prices are too inconsistent for one national range. Request a proposal that names the drawing list, field work, consultants, file formats, permit forms, application support, revision rounds, and construction-phase exclusions. Keep drawing fees separate from authority fees and construction costs.
Ask who owns each responsibility
The draftsperson may prepare drawings. An architect, engineer, designer, or other qualified professional may be responsible for particular design activities. The local authority may require an authorized signature or seal. Ontario’s 2026 application form identifies the applicant and separately asks for individuals responsible for design activities; that is an Ontario example, not a cross-border rule.
Ask:
- Who verifies existing conditions?
- Who designs structure, energy, MEP, drainage, or other specialist work?
- Who signs or seals documents when required?
- Who submits the application and answers review comments?
- How many owner and authority revisions are included?
- Does the fee stop at approval, or include construction support?
Decide how much detail is needed now
The right drawing level depends on what the owner is trying to do. A planning conversation may need a measured concept; a permit application needs the information the authority asks for; a fixed-price bid may need more dimensions and specifications; construction may require additional details and coordination. Ask the provider to identify the intended decision for each issue set.
If the owner is choosing between layouts, price the alternatives before authorizing a complete permit package. If the authority’s checklist is uncertain, ask for a preliminary review or meeting and define the drawings required for that step. Producing a full set before resolving a major zoning or site constraint can lead to redesign.
Manage revisions and document control
The proposal should identify the number of owner decision rounds, consultant coordination rounds, and authority response rounds included. Ask what is treated as a correction, what is a new owner change, and what happens if a design assumption proves wrong. State who will issue updated sheets and how the team will mark a superseded set.
Keep a register of drawing issue, purpose, and status. A contractor may price one issue while the authority reviews another; without version control, the owner can compare unlike scopes or build from an outdated plan. Ask whether the provider will maintain the register and distribute the current set to the owner and consultants.
Keep a budget allowance for the full document chain
List the drawing provider, each consultant, application fees, authority review, revisions, and construction information separately. Ask who obtains the survey, who prepares forms, and whether the owner must provide records or access. If one proposal bundles consultant fees, request the underlying scope so that a missing discipline is not discovered after the permit package is underway.
Use the same issued drawing set for the contractor estimate and the authority submission whenever possible, and record where they differ. A contractor may need additional details that are not required for permit review. If those details are deferred, note who will prepare them and when. This avoids a gap between permit approval and a buildable price.
Coordinate the schedule with the fee
Ask when the professional needs a site survey, owner selections, consultant input, and authority answers. Delayed inputs can extend the design phase and create additional service fees. If a contractor is providing preconstruction input, ask which drawing issue they will price and how the architect will resolve feedback.
Ask who will issue the final PDF and editable files, what reuse rights apply, and whether the professional will retain a copy of the approved version. These details matter if the owner changes contractors or needs a future revision.
Approval remains separate
Paying for drawings does not guarantee that an authority will accept or approve them. Toronto, Seattle, Ontario, and British Columbia materials all frame permitting as a project-specific process involving completeness, compliance review, fees, and inspections. A correction may require a professional response, an authority resubmittal, or both.
The best way to control drawing cost is to confirm the local checklist early, provide accurate existing information, define the desired project, and compare proposals by deliverables. Read permit plan review and correction costs if the drawings have already been submitted.
Make drawing proposals comparable
Request a deliverable list tied to the authority’s current checklist and the design stage. One proposal may include existing-condition plans, structural details, energy documents, and coordination with consultants; another may include only a basic plan set. Ask who responds to comments and whether revisions caused by owner changes, missing information, or code interpretation are included. If a contractor is pricing the work, confirm that the drawings communicate enough detail for a dependable bid. The lowest drawing fee may shift cost into construction allowances or later revisions, so compare the likely total effort and decision support rather than the page count alone.
