Existing-condition drawings describe the house as it is understood before design. They may be based on field measurements, photographs, old plans, laser scanning, or a combination. “As-built” can also mean record drawings showing what was installed during construction. Because the term is used inconsistently, define the deliverable before comparing prices.
Choose the level of information you need
A focused remodel may need a measured plan of the kitchen, adjoining walls, openings, and a few ceiling heights. An addition may require floor plans, exterior elevations, sections, roof geometry, the relationship to site grades, and enough information for engineering. A full-building model can be useful when several disciplines need coordinated information, but it takes more field and drafting time. Ask the architect or engineer to identify the minimum useful package before requesting a quote.
Also state the intended output. A sketch may support early space planning, a dimensioned PDF may support a design conversation, and editable CAD or BIM files may support a coordinated drawing set. Those deliverables involve different levels of checking and may be subject to licensing or reuse terms. Ask whether the provider will deliver raw point data, a model, a drawing set, or only a record of measurements.
Field observations do not reveal every concealed condition
The provider can record accessible, visible features within the contracted scope. Finishes can hide framing, wiring, plumbing, insulation, and prior repairs. A laser scan or photograph documents visible geometry but does not prove that the hidden structure matches the drawing. If the design depends on a concealed condition, ask the responsible engineer or contractor how it will be verified and who authorizes any opening or test.
The proposal should state how dimensions are checked and how discrepancies are reported. Ask whether the provider will flag unusual conditions, unlevel floors, or differences from old plans, and whether investigating those differences is included. A measured drawing should distinguish observed features from information copied from records or supplied by the owner.
Plan the handoff to design and pricing
Before field work, ask the design team which elements matter most: wall thickness, window openings, ceiling heights, stair geometry, roof slope, visible beams, equipment, or selected utility locations. Ask whether a surveyor must establish property lines or site elevations separately. Give the measurement provider the file format, units, naming convention, and coordinate requirements from the next professional.
If the design changes after measurement, ask how updates are billed. A small adjustment may require only a localized field check; a revised addition footprint may require additional exterior and site information. If construction is already underway, clarify whether the requested drawing is an existing-condition record, a progress record, or a final as-built record. Each describes a different point in time.
Compare the cost against rework
The goal is not to measure every inch. It is to get reliable information for the next design decision without making assumptions that create avoidable redesign. A narrow scope may be the right first step when the project is small and later details are not yet needed. A broader coordinated package may be more efficient if structural, mechanical, and architectural work all depend on the same geometry.
Ask the provider to separate field time, drafting, modeling, travel, revisions, and extra visits. If the house is occupied, furnished, or difficult to access, arrange access before the crew arrives. Confirm whether the fee includes moving small objects or whether rooms must be cleared by the owner. This makes quotes more comparable and reduces the chance that a return visit becomes an unplanned cost.
What it is not
A measured-drawing package can show floor plans, openings, ceiling heights, roof geometry, sections, elevations, visible structure, equipment, finishes, or selected utilities. A designer may need only the rooms affected by a remodel. An addition or major alteration may require more of the building and its relationship to the site.
The provider may deliver a sketch, PDF, CAD file, BIM model, photo set, or verified background drawing. More detail and more usable file formats usually mean more field and drafting time. Ask whether dimensions are approximate, field-verified, or tied to a stated accuracy.
What it is not
Measured building drawings are not a legal boundary survey. They do not automatically identify easements, property lines, underground utilities, soil conditions, concealed framing, or code compliance. Old permit plans and listing drawings can help orient a team but should not be treated as guaranteed current conditions.
If the design depends on a structural element, a professional engineer may need to verify it. If it depends on site grades or boundaries, a surveyor may be required. These are separate services even when one company coordinates them.
Main cost drivers
- House size, number of floors, and geometry.
- Detail level and rooms included.
- Occupied, furnished, restricted, or difficult-to-access spaces.
- Missing records and discrepancies between plans and field conditions.
- Field measurement method and equipment.
- CAD/BIM conversion, modeling, schedules, and file-format requirements.
- Urgency, travel, and revisions after the first delivery.
There is no reliable universal range because “as-built” may describe a one-room drawing or a coordinated model of an entire house. Request a fixed scope, or ask for hourly assumptions and a not-to-exceed amount for exploratory measurement.
How to write a useful request
Give the provider the proposed remodel area, old plans, photos, desired deliverable, and the design team’s file requirements. Ask:
- Which floors, exterior faces, roof areas, and site interfaces are included?
- Which dimensions and features will be field-verified?
- Are concealed conditions excluded?
- What accuracy or tolerance is expected?
- Are structural, MEP, survey, or code reviews included?
- Is the output suitable for design, permit submission, estimating, or only early planning?
- How are discrepancies and owner-requested additions billed?
Compare measurement methods and deliverables
A provider may measure by hand, use laser equipment, photograph or scan visible rooms, or combine methods. The method matters less than whether the resulting dimensions and level of detail suit the design team’s use. Ask which dimensions are field-checked and whether the provider will reconcile observations against prior drawings.
Clarify whether the drawings show dimensions, wall thicknesses, openings, ceiling heights, visible beams, equipment, finishes, and selected utilities. Ask for the file format, units, layers, reference points, and version date. If a contractor or engineer will reuse the drawing, confirm that the provider grants the required file rights and that the next professional accepts the format.
Control additions after the first visit
During measurement, the owner may discover another room or system the team wants documented. Ask the provider to price added areas and detail before the scope grows. A small increase in field work may be efficient during the same visit; a later return trip may involve separate travel and mobilization.
If a designer needs more detail after reviewing the first drawing, ask them to identify the specific missing information. This is better than requesting “more detail” without knowing what decision depends on it. It also helps distinguish a missed contracted item from a new design requirement.
Avoid commissioning duplicate backgrounds
Before hiring, ask the architect, engineer, and contractor to identify which existing-condition information they already have and which part is missing. If an old CAD file exists, ask whether it can be verified and updated or whether a fresh measurement is safer. The provider should identify differences between records and field observations rather than silently choosing one.

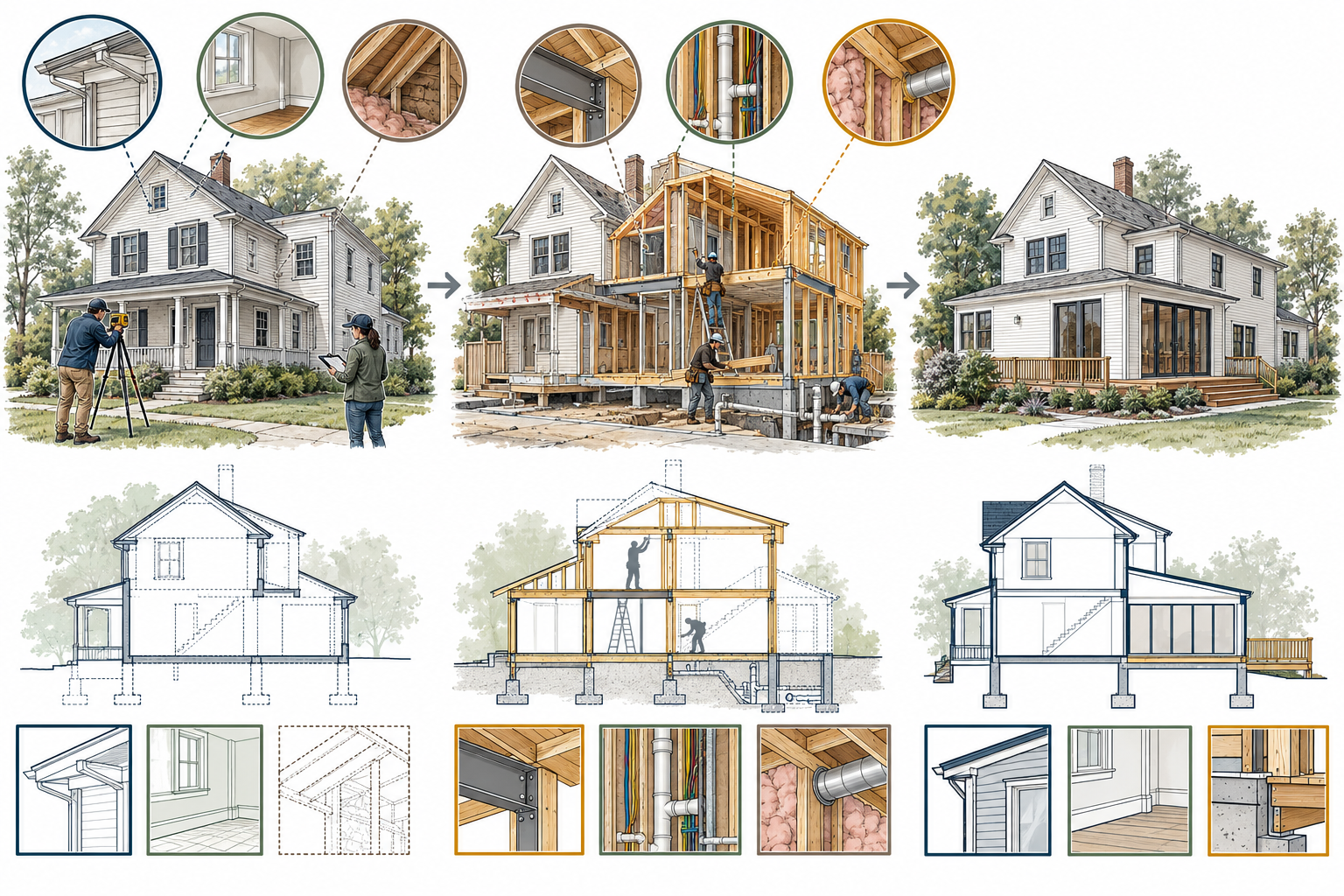

Agree who owns updates after construction begins. A designer may need an existing-condition background before work; the contractor may need record drawings after changes; the owner may want a final record set. These are different timing and accuracy expectations, so the phrase “as-built” should be tied to an issue date and specific contents.
Make the drawing set traceable
Ask the provider to label the measured date, source documents, field-verified dimensions, and assumptions. If the drawing is later revised, keep the earlier issue so the design team can see what changed. A clean record helps a contractor distinguish existing construction from new work and gives future professionals context.
Before sending the set to a bidder or permitting authority, ask the originating professional whether it is suitable for that use. The owner should not remove the limitations or certification notes when sharing the file.
Keep the delivered file and any measurement notes with the project record. If another professional later changes the drawing, label the new version and retain the original so the source and date of each dimension remain clear.
When spending more is worthwhile
An accurate background can reduce redesign and help consultants coordinate, but more detail is not always better. Match the survey to the next decision. A kitchen layout may need a focused room measurement; an addition may need a site survey, structural investigation, and broader existing-condition set. The architect or designer should tell you which information is necessary for the next phase.
Treat the drawing as a documented snapshot with stated limits. It improves design confidence, but it does not eliminate the need to verify conditions that become important during demolition or construction.
