Bay and Bow Window Cost: Replacement, New Installation and Structural Extras
Bay and bow windows are projecting assemblies rather than ordinary single-window units. They can combine several sashes or fixed panes with a projection, support, roof or head treatment, interior seat or trim, and exterior weather-management details. A quote that lists only the window unit may omit much of the project.

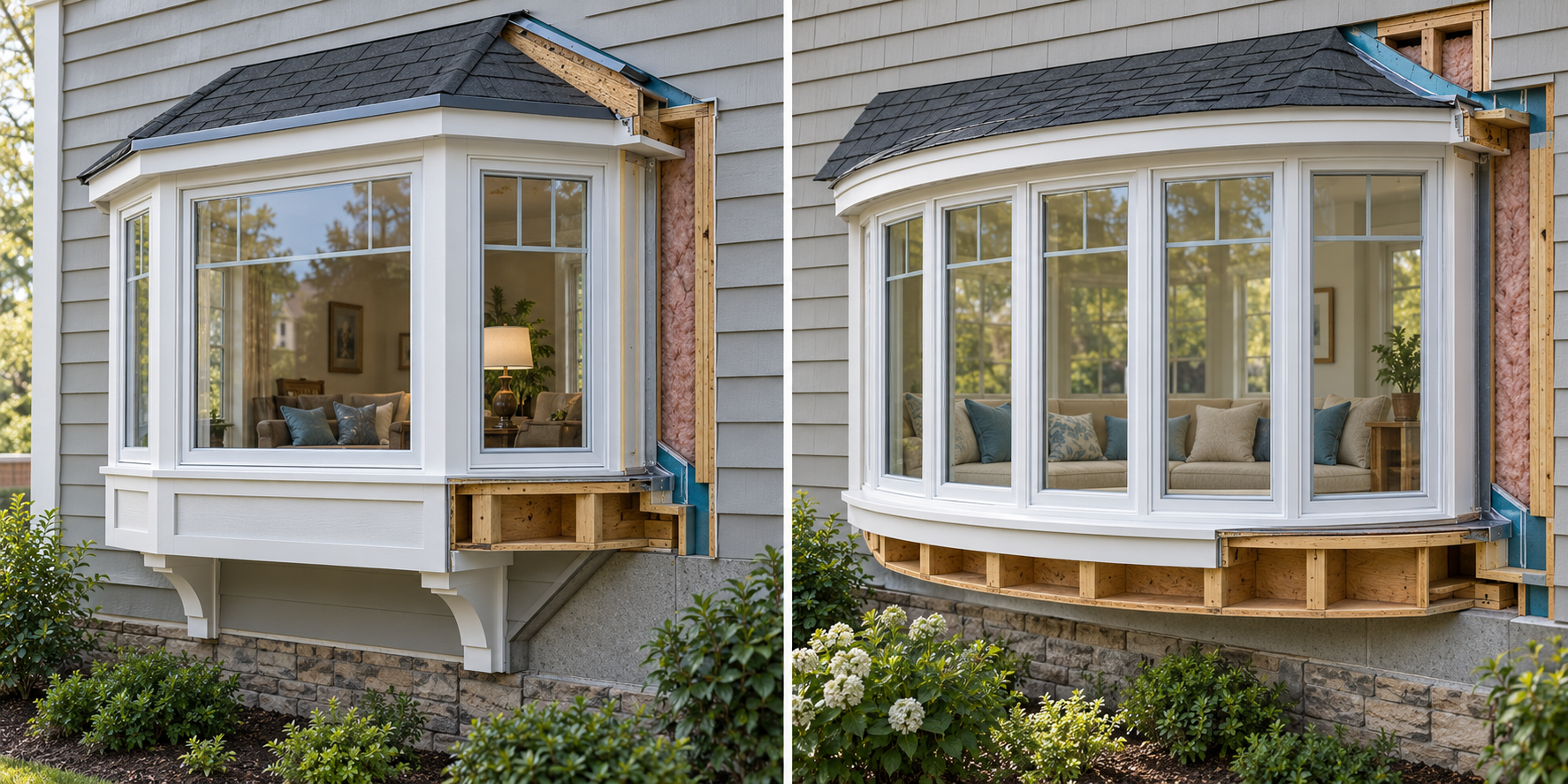

Bay versus bow
A bay commonly uses angled sections around a central window and may project with a defined number of units. A bow typically uses a series of narrower units to create a gentler curve. Retail and contractor terminology varies, so ask the bidder to identify the number of units, projection, support, roof or head treatment, and interior finish in writing.
Existing projection versus new projection
Replacing an existing assembly can be narrower when the support, rough opening, roof or head, flashing, and interior seat are sound. It can still require removal of multiple units, custom glazing, access equipment, finish protection, and repair to concealed damage. Creating a new projection adds opening modification, framing, water management, exterior cladding, interior finish, and possible structural or approval scope.
Building America guidance treats every opening as part of a wall drainage system. Sill or pan flashing, side and head flashing, and the connection to the wall’s drainage plane need to be coordinated. A projecting roof or head can add another place where water must be directed away from the wall.
Main cost drivers
- number, size, operation, frame, and glazing of the window units;
- support framing, brackets, roof or head construction, and exterior finish;
- trim, seat, drywall, flooring, and paint inside;
- siding, stucco, brick, or masonry repair outside;
- upper-floor access, weather protection, demolition, and disposal;
- custom fabrication, obsolete dimensions, and lead time;
- structural review, engineering, or local approval when the opening or support changes.
The evidence does not establish a dedicated universal bay or bow price. Treat a product-only number as incomplete until the installation and finish boundary is clear.
Separate the assembly from the window units
Before comparing proposals, identify whether the project is replacing the individual windows inside an existing projection, replacing the entire bay or bow assembly, repairing its support and exterior treatment, or creating a new projection. These options can look similar in a catalogue but carry different demolition, framing, water-management, and finish scopes.
Record the number of units, approximate projection, angle or curve, operating types, frame and glass, interior seat, ceiling or soffit treatment, exterior roof or head, support, and adjacent cladding. Ask whether the existing rough opening and support are being retained. If a contractor prices only “three windows,” the estimate may omit the assembly that makes the project difficult.
Common cost scenarios
A simple replacement may reuse a sound projection, support, roof or head, flashing, and interior finish while changing the window units. A typical repair may require removal of trim, replacement of one sash or pane, localized sill work, adjustment of support, and restoration of interior or exterior finishes. A complex project may involve sagging, water damage, masonry or cladding disturbance, new support, changed projection, custom glazing, upper-floor access, or an opening that must be rebuilt.
The evidence does not establish a reliable universal bay or bow installed price. Use a complete local scope rather than a product-only figure. Separate the costs of units, support or framing, water management, roof/head treatment, interior seat and trim, exterior restoration, access, disposal, and conditional concealed work.
Support and movement need qualified evaluation
Projecting assemblies can transfer load through framing, brackets, joists, or other support arrangements. Sagging, cracks, movement, or doors and windows that no longer align can have more than one cause. Do not infer the load path or structural safety from a photograph, a sticking sash, or a small gap. When support or wall movement is in question, obtain the appropriate qualified evaluation before approving a cosmetic repair.
Structural assessment and engineering are not automatically required for every replacement. They become a project question when the support changes, the opening is enlarged, the projection is newly created, or observed movement cannot be explained by a component adjustment. Ask who owns that evaluation and whether the quote includes only the physical work or also design and approval services.
Water management and finish restoration
Building America guidance treats window sill or pan flashing, side flashing, head flashing, and integration with the wall drainage plane as connected details. A bay or bow adds joints, angles, and sometimes a small roof or head surface. Water can enter at the unit, a joint, the projection roof, cladding, or an adjacent wall transition. Replacing the glass or window units does not automatically correct a failed drainage detail.
Ask how the installer will protect the opening during demolition and reconnect flashing, air sealing, insulation, cladding, trim, drywall, seat, and paint. If interior woodwork must be preserved, state that before work begins. Matching an older profile or finish can cost more than installing a new standard trim package.
Repair versus full replacement
Repair can be good value when the projection is stable, its support and water path are sound, one component has failed, and compatible parts exist. Full replacement is more plausible when multiple units fail, the frame or support is broadly deteriorated, the projection no longer suits the room, or nearly all trim and flashing must be removed anyway. Removal or simplification may be another option when maintenance and water risk outweigh the value of the projection.
For older homes, ask whether removing paint, putty, siding, plaster, or insulation can disturb lead or asbestos-suspect material. EPA’s U.S. RRP guidance generally applies to paid work disturbing paint in pre-1978 housing; Canadian health guidance recommends assessment of older paint and suspect materials before renovation. Include qualified work and current local requirements where applicable.
The quote should show the complete assembly, not just a per-window number. Require drawings or measurements, support assumptions, flashing, glazing, access, finish, disposal, warranty, and the condition that would trigger a broader investigation.
Repair may fit when one sash, pane, operator, or localized finish is failing and the support and opening remain sound. Replacement is more plausible when multiple units, the frame, or the water-management details are deteriorated. If the projection has movement, sagging, or suspected structural damage, obtain qualified evaluation rather than assuming a window contractor can determine the load path from appearance alone.
Ask for drawings or measurements, support assumptions, flashing, finish, glazing, access, disposal, warranties, and concealed-condition allowances. Compare the complete assembly and its interfaces, not a single per-window number.
