Steel vs. LVL vs. Glulam Structural Beams: Cost and Project Tradeoffs
There is no useful universal material-only price comparison. As a US planning frame, a residential beam project may fall around $5,000–$15,000 when access and bearings are simple, $10,000–$30,000 for a typical retrofit, and $25,000–$60,000+ when posts, footings, shoring, utilities, finishes, fabrication, or difficult handling are involved. Canadian owners should compare local CAD installed proposals.
Design determines what can be compared

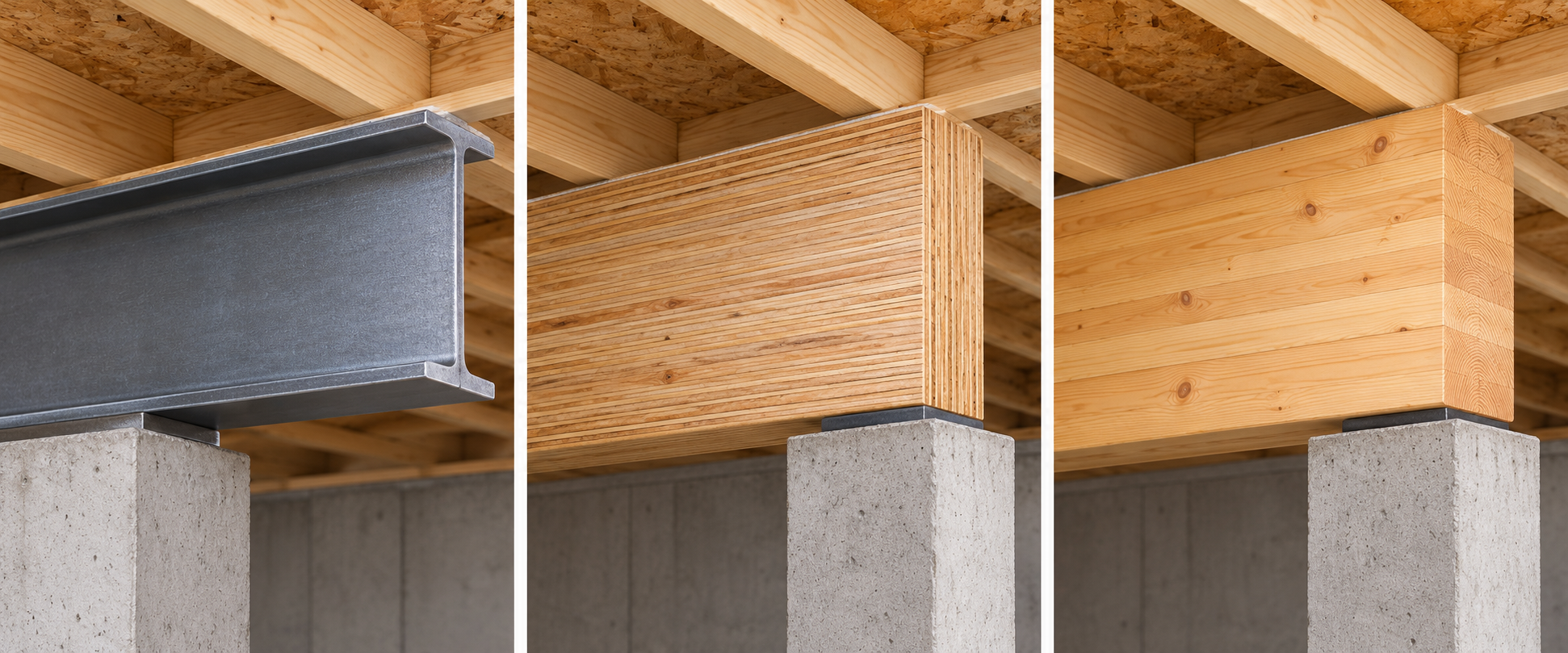

Steel, LVL (laminated veneer lumber), and glulam (glued laminated timber) differ in strength, section shape, weight, depth, connections, availability, handling, and finish integration. The structurally viable options come from the design and load path. A homeowner should not choose a beam from a generic span table or a material-only quote.
The cheapest material may require deeper pockets, more posts, special fabrication, crane or crew access, fire or finish treatment, or a different bearing arrangement. Installed economics are the relevant comparison.
Tradeoffs at a decision level
Steel can offer a compact section in some designs, but fabrication, corrosion protection, handling, connections, and delivery can add cost. LVL may be readily integrated into wood framing and can be available in common residential applications, but depth, plies, handling, and bearing still matter. Glulam can suit visible or architectural conditions and larger timber forms, but fabrication, delivery, finish, and local availability can change the budget.
These are general distinctions, not a selection recommendation. The actual member, connection, support, and protection requirements govern.
Cost drivers
Span and load, required depth, beam weight, shop fabrication, delivery, access, temporary support, posts, footings, bearing, connection hardware, utilities, finished ceilings, engineering, permits, disposal, and restoration matter. A short beam in a finished basement can cost more than a longer beam in an open space.
Scenarios
Open retrofit: Simple access, known bearings, common stock, and limited finishes. Material differences may remain visible in delivery and handling rather than dominating.
Typical opening: A wall is removed, a beam is installed, posts or footings are added, and finishes are restored. Compare the complete structural package.
Constrained or exposed design: Low clearance, long span, remote delivery, visible beam, or difficult fabrication makes depth, handling, and finish part of the decision.
Normalize proposals
Ask each bidder for the designed beam identity, material and dimensions, bearings, posts and footings, connection scope, temporary support, access and lifting, engineering, permits, delivery, finish integration, warranty, and hidden-condition allowances. Keep elective architectural finishes separate from required structural work.
The right comparison is the installed system that satisfies the design and fits the property. A lower material price is not a lower project price until handling, support, connections, access, and restoration match.
Compare proposals at the same design point
Request the designed member, span and bearing assumptions, posts or footings, connection details at a decision level, delivery and handling, temporary support, finish treatment, engineering, permits, and restoration. If one option is shallower but needs heavier fabrication or different posts, price the complete system. If one is exposed, include the architectural finish separately from required structure.
Ownership horizon matters. A future remodel, inspection, service route, or basement use can make depth and access more valuable than a small material difference. Availability can also change schedule and temporary protection costs. Choose among options that are actually approved for the load path, then compare installed cost and residual flexibility.
Ask what the material choice changes around it
For each designed option, compare beam depth, post location, footing demand, handling route, delivery lead time, connection hardware, corrosion or protection treatment, and finish integration. A compact steel section may change fabrication and handling; a timber beam may change depth, plies, or finish; a glulam may involve fabrication and delivery that are locally constrained. None of these general tendencies replaces the actual design.
Keep material, installation, engineering, permits, temporary support, and restoration in separate quote lines. If a material is unavailable, the delay can create temporary weather protection or a second mobilization. For a short horizon, avoid paying for an appearance upgrade that does not improve the structural outcome; for a long horizon, value access, serviceability, and future alteration flexibility.
Before choosing a beam material
Ask for comparable designed options with the same span, bearings, posts, footings, connections, temporary support, access, delivery, engineering, permits, and restoration. Record what changes when a member is deeper, heavier, exposed, fabricated, or locally unavailable. Material-only prices do not answer those questions.
For a short horizon, avoid paying for optional appearance work that does not change the structural outcome. For a long horizon, value headroom, service access, future remodel flexibility, and the chance to avoid another opening. Choose only among options that the responsible design permits.
A practical quote comparison
Request the designed member and compare the same span, loads, bearings, posts, footings, connections, temporary support, delivery, handling, finish, and restoration. If one option is shallower or heavier, record what that changes around it. A material-only price is not an installed alternative.
For short ownership, required structure and disruption may matter more than premium appearance. For long ownership, include future access, serviceability, material availability, and remodel flexibility. Choose only among options accepted by the responsible design.
Material choice changes the surrounding work
The beam material affects handling, connection details, depth, appearance, fire or finish treatment, moisture sensitivity, and the number or size of pieces that can be brought into the building. A steel beam may need different lifting or corrosion-protection provisions; an engineered wood beam may simplify handling but require more depth or multiple plies. Glulam may suit an exposed design while changing lead time and finish expectations.
Ask each bidder to price the same design point: span, loads, bearing, deflection criteria, beam depth, post arrangement, temporary support, delivery, installation, connections, and finish treatment. Then identify what is excluded because of the selected material. The cheapest member can create the most expensive access or restoration plan. Material comparisons become meaningful only after the structural design and finished-room requirement are held constant.
Hold the structural design constant
Material comparisons are meaningful only after the load, span, bearing, deflection objective, connection concept, and finished-space requirement are held constant. A shallower steel section may alter fabrication, handling, corrosion protection, or post locations. An engineered wood option may be easier to handle but need more depth, multiple plies, or different bearing. A glulam may suit an exposed condition while adding fabrication, delivery, and finish decisions.
Ask for comparable designed options rather than separate material guesses. Record the member identity, beam depth, number and location of supports, footing needs, handling route, temporary support, delivery lead time, engineering, permits, and restoration. If one bidder cannot provide a viable designed alternative, its lower material price is not evidence of lower installed cost.
Include future flexibility in the comparison
The beam can affect headroom, service routes, future openings, basement use, exposed finishes, and inspection access. An option that is slightly more expensive to install may avoid a difficult post location or preserve a future remodel path. Conversely, an architectural finish or premium appearance may not add structural value and should be separated from required work.
For short-term ownership, compare required structure, schedule, handling, and disruption. For long-term ownership, include serviceability, availability, future access, and documentation. Choose only among options accepted by the responsible design, then compare the complete installed system rather than the price of steel, LVL, or glulam alone.
Price the consequences around the member
The material can change the access route, delivery equipment, number of pieces, beam depth, post placement, connection work, corrosion or finish treatment, and the time the room is protected or occupied. Ask each bidder to identify those consequences and to price the same structural result. A lighter or more familiar material is not automatically cheaper when it needs extra depth, more plies, a longer delivery, or different bearing work.
If the beam will be visible, separate architectural finish and appearance from the required structural work. If it will be concealed, compare headroom, service routes, future openings, and inspection access. Availability can also affect schedule and temporary protection, especially where a fabricated or unusual member is required. Keep those risks in the comparison instead of assuming that a material quote is a delivery-ready installation.
For a short horizon, required structure and disruption may dominate. For a long horizon, future flexibility and serviceability may justify a different installed system. The responsible design establishes what works; the homeowner’s economic decision is which approved option best fits the building and the ownership plan.
Keep fabrication and field fit in the same comparison
Steel, LVL, and glulam can differ in lead time, delivery length, field cutting limits, lifting equipment, connection fabrication, moisture protection, and the number of pieces that must be assembled in place. Ask each bidder to show those assumptions and the route from delivery to final bearing. A material that looks cheaper at the supplier can lose that advantage if it requires more shoring, specialized handling, or a different opening in the building.
The owner should receive a comparable structural and restoration endpoint: designed member, adequate bearings and connections, protected work area, and the same ceiling, wall, floor, and finish condition. For long-term ownership, retain the design and connection records and consider future access. For short-term ownership, compare schedule and disruption while keeping appearance upgrades separate. The choice is among approved installed systems, not commodity prices alone.
