Repairing Cut, Notched or Drilled Joists and Beams: Cost and Repair Paths
US planning allowances are roughly $500–$3,000 for assessment and a limited accessible repair, $2,000–$12,000 for reinforcement or localized replacement, and $10,000–$35,000+ when several members, engineered framing, utilities, access, or finishes are involved. These are scenario bands, not prices for a specific hole or notch. Canadian homeowners should obtain local CAD quotes.
Why an alteration becomes a structural decision

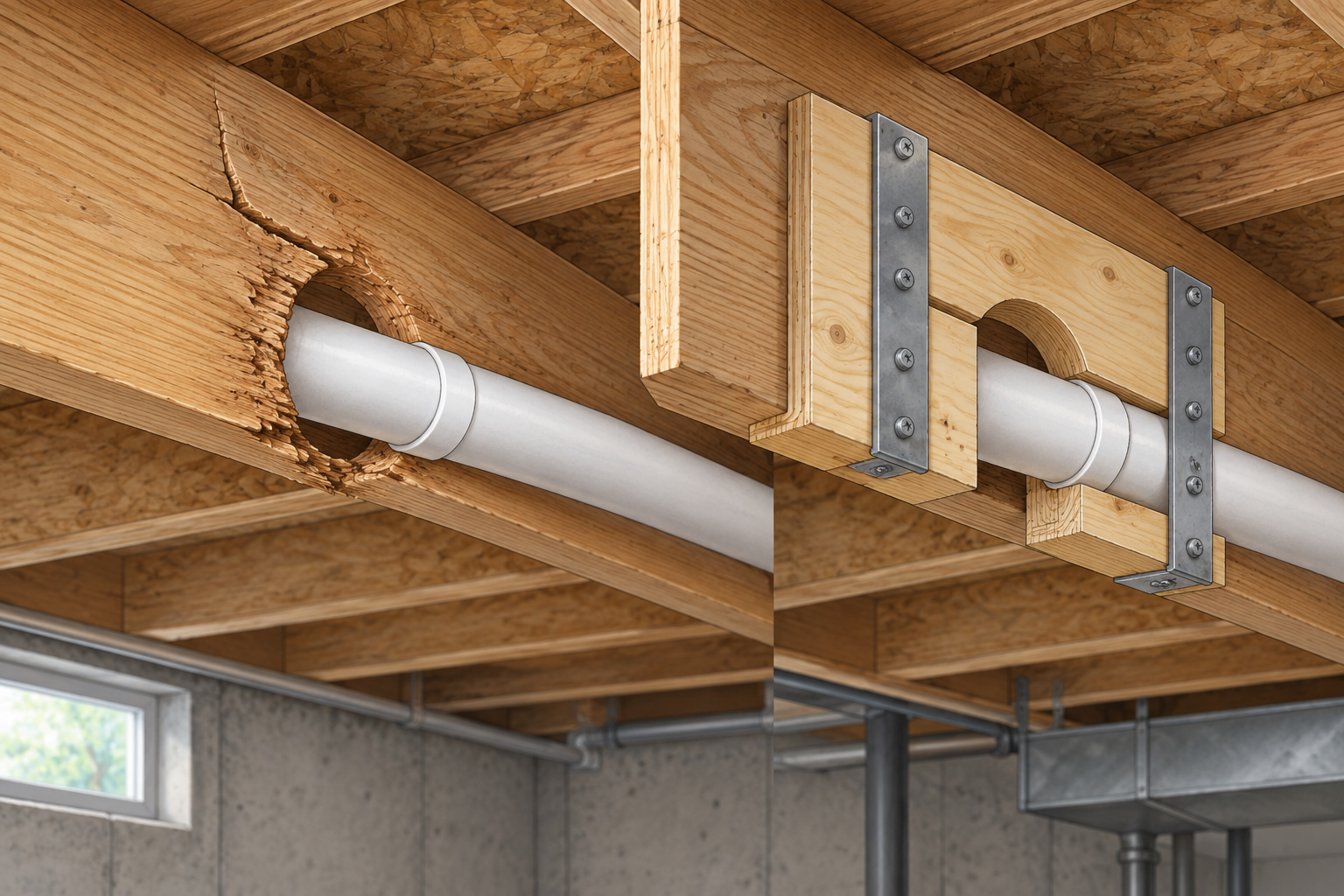

Pipes, ducts, wiring, remodel openings, and prior repairs can cut, notch, drill, or remove material from a joist, beam, rafter, or truss. The effect depends on member type, location, load, span, connection, and whether other damage exists. Engineered members have their own design and manufacturer dependencies.
HUD inspection guidance treats altered members, deflection, deterioration, and structural connections as inspection concerns. It does not provide a universal repair prescription. Do not infer that a visible opening is either harmless or unsafe without appropriate evaluation.
Common repair paths
The repair may be sistering a conventional member, adding an engineered reinforcement, replacing a section, replacing the member, relocating a utility, or redesigning a support system. An engineer or manufacturer may need to establish the applicable detail. The most economical option may be the one that avoids opening a finished room twice, but only if it solves the actual load-path issue.
Cost drivers
Member type, alteration location, number of members, access, ceiling or floor finishes, utility relocation, temporary support, engineering, permit requirements, material availability, disposal, and restoration matter. A single accessible joist can be a focused job; an altered beam above a finished space can require shoring and broad buildback.
Do not turn legal responsibility into a cost assumption. The identity of the earlier contractor, insurance coverage, or claim rights is outside this article and depends on documents and local law.
Scenarios
Conventional joist: A bounded opening is exposed in an unfinished area and reinforcement or replacement is feasible. Price access and connection work explicitly.
Beam or multiple members: The alteration affects a primary support or several aligned members. Budget for temporary support, engineering, utility coordination, and a wider inspection.
Engineered truss or concealed condition: Original design information is missing or the alteration is in a truss, LVL, glulam, or other engineered member. Expect more uncertainty and possible design/manufacturer involvement.
Quote checklist
Ask which member is affected, what was altered, how the condition was evaluated, what repair path is proposed, whether utility relocation is included, who provides design, how temporary support and access are handled, and how concealed damage is priced. Require dimensions and repair details from the responsible professional rather than borrowing a generic internet diagram.
The budget is ready for comparison when the member, repair purpose, access, design responsibility, and restoration boundary are explicit.
Price the cause and the repair separately
If a utility must move, include its relocation and the finish opening as separate lines. If the utility remains, the structural professional should document why that arrangement is acceptable. This prevents a framing allowance from being mistaken for a plumbing, HVAC, or electrical correction.
For a short horizon, a focused engineered repair can be sensible when the member and opening are fully understood. For a long horizon, consider the cost of preserving access, documenting the repair, and avoiding repeat demolition if the utility is changed later. Do not assign liability or promise insurance recovery from the physical repair price.
Preserve the decision trail
Ask for photos and identification of the altered member, the repair purpose, design responsibility, utility treatment, temporary support, access, and finish restoration. If the member is engineered, require the applicable design or manufacturer path. A generic reinforcement price is not comparable with an engineered repair that includes documentation.
For a short horizon, a focused repair may be efficient when the alteration is fully understood. For a long horizon, include future utility access, repair records, and the cost of reopening finishes. Keep legal responsibility, insurance, and contractor liability outside the physical repair budget unless separately established.
Make the corrected service route part of the scope
An alteration often exists because a utility needed a route through the framing. Repairing the member without deciding whether that route remains acceptable can create a second opening later. Ask whether the service will stay, be protected, be rerouted, or be removed, and who owns that work. The structural and utility scopes may be performed by different trades, but the quote should show how they meet.
The affected member may be conventional or engineered, and the surrounding damage may be larger than the original opening. Ask for a base scope, the access and finish restoration included, and a measurable allowance for additional members or openings. If design documentation or manufacturer input is needed, price that review before construction rather than burying it in a generic contingency.
For long-term ownership, preserve the repair record and future access to services. For short-term ownership, a bounded correction can be sensible when the member, opening, and surrounding load path are documented. The physical budget should not assume a legal remedy, insurance recovery, or responsibility finding that has not been independently established.
Budget the boundary between utility and structure
Ask whether the utility will be moved, whether the member is conventional or engineered, and whether the surrounding framing was inspected. Separate design review, temporary support, utility work, structural repair, access, and finish restoration. The cheapest path may move a utility; the least disruptive path may require a more careful engineered repair.
Use a base scope for the documented member and a measurable allowance for additional openings or damage. This makes the quote comparable without assigning responsibility for the original alteration or promising insurance recovery.
A practical quote comparison
Normalize the member type, alteration location, number of affected members, design review, utility relocation, temporary support, access, structural repair, and finish restoration. If one bid leaves a utility in place and another relocates it, they are different solutions even if the framing line looks similar.
Treat an engineered member, beam, or truss as a separate uncertainty class. Ask what documentation establishes the repair and what condition would cause the method to change. This keeps a low-cost conventional repair from being compared with a responsible engineered scope.
Locate the service before deciding how much structure to open
A cut, notch, or hole may have been created for plumbing, electrical, HVAC, a drain, or an earlier remodel. The repair can require moving the service, protecting it while structural work occurs, and restoring the finish around both systems. A structural patch that leaves an incompatible or inaccessible service route can create repeat work.
Ask the bidder to identify the altered member, opening dimensions and location, available access, and whether adjacent members show similar alterations. Clarify whether the price includes tracing utilities, temporary support, rerouting, engineering, connectors, and finish restoration. If the defect is widespread, a repair-by-opening may be less economical than redesigning the service path or replacing a run of framing. Compare the total corrected condition, not only the added wood or hardware.
Separate the original alteration from the current repair choice
The fact that a member was cut, notched, or drilled does not by itself identify the required repair. The member may be conventional framing, a beam, an engineered wood product, or a truss; the opening may affect a bearing zone, connection, chord, web, or only a noncritical area. The responsible professional must determine the repair path. The homeowner’s budget question is how that determination, temporary support, utility work, and finish access are represented in the quote.
Ask for the affected member and opening to be documented, including areas that were not visible. If several members were altered during one remodel, price the investigation and repeated access rather than accepting a per-hole shortcut. If the service can be moved, compare relocation with a designed structural repair by the finished route, not just the framing line. If the member is engineered, missing design information is a separate uncertainty and should be priced as such.
Use a staged correction when the service path is unresolved
A decision-ready scope may have an investigation stage, a utility decision, a structural design stage, and construction/restoration. Each stage should say what evidence or approval moves the project forward. This avoids closing a floor or ceiling around a repair that still leaves an incompatible pipe, duct, cable, or future service access problem.
For long-term ownership, include documentation of the repaired member and future utility access. For short-term ownership, a focused repair may be sensible when the alteration and surrounding load path are fully understood. Keep legal responsibility, insurance, and contractor-liability questions separate from the physical cost unless independently established.
