Residential civil or drainage engineering translates site conditions and local requirements into a grading, stormwater, drainage, servicing, or site-development solution. The service can support an addition, new house, retaining work, driveway change, flood adaptation, or a project that changes impervious area. The physical drain, swale, pipe, wall, or grading work belongs in the construction budget; the study and documents are professional-service costs.
What the engineer may deliver
Depending on the assignment, the scope can include a site review, drainage calculations, grading plan, stormwater-management concept, erosion-control information, servicing layout, detention or infiltration analysis, permit drawings, and responses to authority comments. A simple consultation is not comparable with a stamped site plan prepared after a survey and geotechnical investigation.
The local authority may require information because of disturbed area, slope, flood exposure, runoff, environmental constraints, servicing, or project type. Requirements are not universal. Toronto’s pre-application guidance and provincial permit material illustrate the importance of confirming local requirements before committing to a complete package.
What affects the fee
- Size and slope of the site.
- Existing drainage and uncertainty about where water travels.
- Survey quality, boundary information, utilities, and site features.
- Soil, groundwater, infiltration, or retaining conditions.
- Proposed impervious area and connection to public or private systems.
- Number of alternatives, calculations, drawings, and authority reviews.
- Need for a professional seal, construction support, or inspection.
- Travel, access, seasonal conditions, and revisions.
There is no dependable national residential price range. Ask whether the proposal is based on an existing topographic survey or includes one. Topographic site survey cost and geotechnical report cost address inputs that are often separate.
Civil, geotechnical, and physical drainage are different

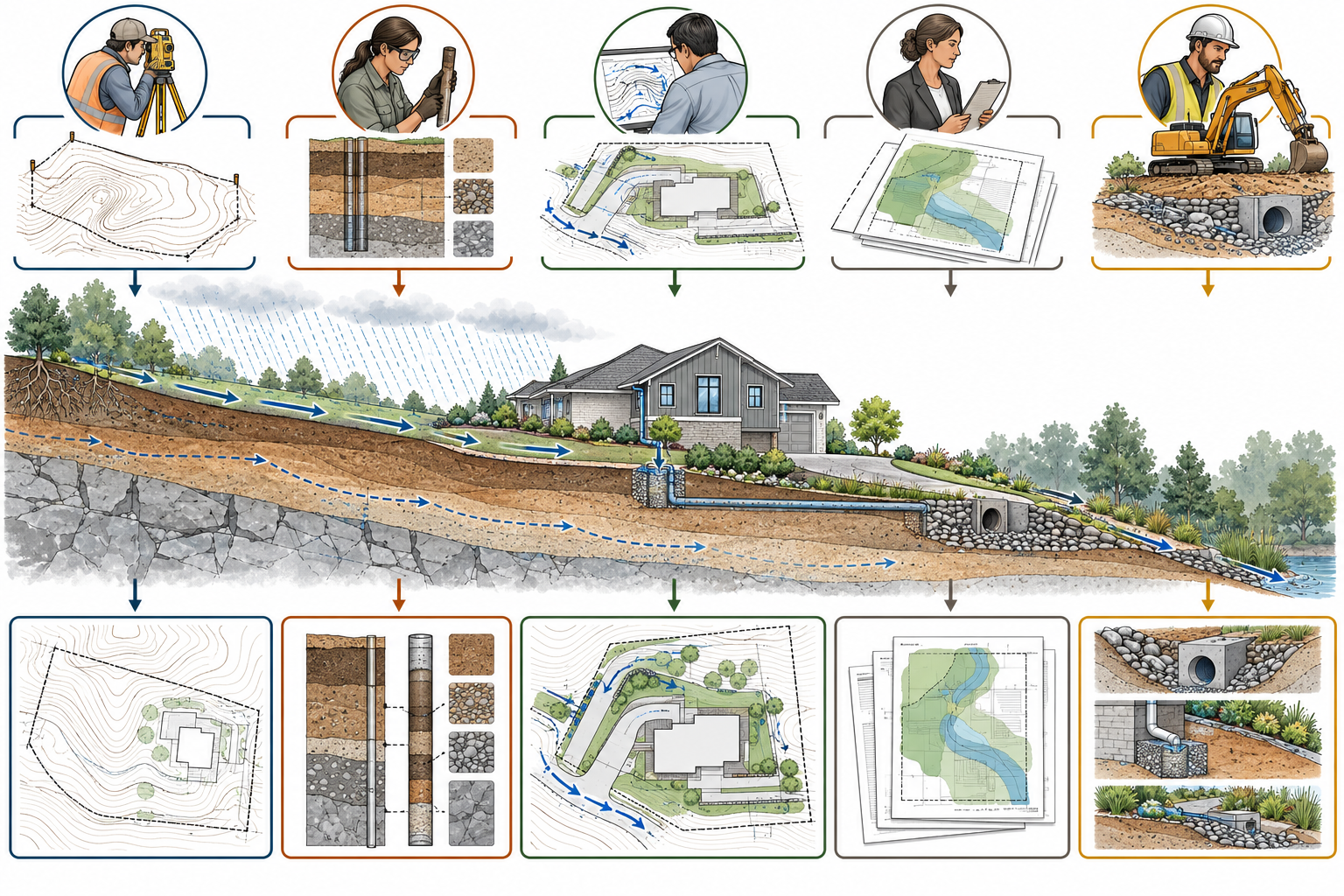

A civil engineer may design the surface-water or site-servicing response. A geotechnical professional may investigate soil and provide recommendations about bearing, slope, groundwater, or infiltration. A surveyor may map elevations and boundaries. A contractor builds the approved work. One firm can provide multiple services, but a bundled proposal should identify who is responsible for each deliverable.
Do not assume a drainage study proves that a proposed system will solve every downstream or neighboring-property issue. It is based on stated conditions, assumptions, and the authority’s criteria. Physical performance also depends on construction, maintenance, and weather beyond the design event.
Decide whether the project needs a study or a design
An early site consultation may help identify where water moves and what records or measurements are missing. It may not produce a permit-ready grading plan, runoff calculation, or engineered details. A design assignment starts with a clearer project and usually requires more reliable survey and site information. Ask the provider which decision the proposed fee resolves and what deliverable you receive.
For an addition or new structure, the design team may need elevations, property boundaries, easements, existing drainage features, utilities, impervious area, and any known flood or slope constraints. For a driveway or patio change, the key issue could be where runoff goes and whether the authority has a specific application requirement. A retaining or steep-slope project can involve structural and geotechnical questions as well as civil design. The provider should identify which disciplines are included rather than treating the word “drainage” as a complete scope.
Time the work before the design is fixed
If civil input is added after the architectural layout is settled, the drainage approach may force changes to grading, finished-floor elevations, walkways, foundation details, or the building footprint. Early coordination can reveal that the preferred site plan requires additional field information or a different concept. Ask the architect or designer when civil input is needed and whether the fee proposal includes coordination meetings.
When comparing alternatives, show the site constraints and intended impervious-area changes. A design that avoids a difficult retaining condition may have a higher design fee but a lower construction cost. A more compact footprint may reduce site work but affect the floor plan. The engineer can explain the site-design consequences; the owner and design team decide how to weigh them.
Break out investigations and construction
Ask the civil engineer to separate the fee for data review, site visit, calculations, drawings, authority responses, and construction observation. Ask who pays for a new topographic survey, geotechnical report, utility locate, tree survey, or environmental review. These inputs can be separately procured, and the civil professional may not control their schedule.
Separate design cost from construction cost as well. A stormwater or drainage design does not include excavation, pipe, grading, restoration, pumps, maintenance, or contractor mobilization unless the agreement explicitly says so. Request a contractor estimate based on the proposed design when the owner needs a total project budget. If the design changes, ask which parts of the earlier work remain usable and which calculations must be redone.
Budget for uncertainty without buying unnecessary analysis
Ask what site condition would change the recommendation. If the answer depends on where water enters, where an existing drain discharges, soil infiltration, or groundwater, ask whether a targeted observation or test could resolve that uncertainty before authorizing a broader study. Do not order testing without knowing which design decision it will inform.
Review the assumptions in the proposal: whether the survey is accurate, the property limits are known, existing drainage can be observed, and the authority’s criteria are current. If the professional cannot verify an assumption, keep it as a named risk in the project estimate and assign someone to resolve it. A low fixed fee based on wrong data can produce redesign costs later.
Ask what the design will let the owner decide
A drainage study should connect observed site conditions to an actionable decision. Ask whether the deliverable will recommend a grading approach, compare alternatives, prepare permit documents, or only identify additional information needed. If the site has a history of water problems, share dates, locations, photographs, prior repairs, and any available records. A single site visit may not capture every seasonal or storm condition, so ask what can and cannot be inferred.
If a proposed system depends on infiltration, soil conditions matter and geotechnical input may be needed. If runoff crosses a property boundary or connects to a municipal system, ask which authority requirements apply. The engineer should state assumptions about downstream conditions and what other approval or owner consent is still needed.
Separate professional fees from physical work
The civil fee is not a construction allowance. A design may call for excavation, grading, pipes, catch basins, pumps, restoration, erosion control, or landscape changes. Ask a contractor to price the approved documents and show access, disposal, temporary work, and restoration separately. If a civil plan is still conceptual, label contractor pricing as preliminary.
Confirm whether the engineering scope includes permit forms, calculation summaries, response to comments, and construction observation. A plan that is accepted for review may still require contractor coordination and field adjustments. Ask what happens if the as-found grade or utility location differs from the survey.
Ask how the result will be maintained
If the proposed design includes a private drainage feature, ask who will maintain it, what access it needs, and whether the owner receives maintenance information. A design can specify a system without including long-term inspection or service. The owner should know which parts are installed by the contractor and which require later upkeep.
Request a clear handoff from design to construction: approved plans, any required inspection points, contractor submittals, and a list of assumptions that must be checked in the field. If the contractor proposes a different route or material, the design professional should explain whether the change affects calculations or authority approval.
Decide who will verify the installed work
Ask whether the design professional will review contractor submittals, observe critical construction stages, or respond to field questions. A drawing alone may not include those services. If the installation differs from the design, the engineer may need to decide whether the change is acceptable and issue revised documents.
The proposal should also say whether final grades or drainage performance will be documented after construction. A contractor’s completion note, an engineer’s observation, and a municipal inspection are different records. Identify which one the authority or owner needs before final payment.
How to keep the scope comparable
Give each provider the same site plan, survey, photos, prior drainage complaints, proposed footprint, and information about known utilities. Ask:
- What authority requirement or design decision is being addressed?
- What survey, soil, or utility data is assumed?
- Are calculations, plans, permit forms, and responses included?
- How many review cycles and design options are included?
- Does the fee include construction observation or only design?
- What happens if the site data reveals a different drainage condition?
Treat any legal or permit statement as a local example until confirmed by the responsible authority. If the project involves a potentially unsafe slope, flooding, contaminated water, or structural retaining condition, obtain site-specific professional advice rather than relying on a generic cost article.
Coordinate the design input
Drainage design often depends on decisions made by the surveyor, architect, geotechnical consultant, and utility providers. Ask the civil engineer to identify which base drawings and site information must be current, who will obtain them, and how a later change in building footprint affects the fee. Clarify whether calculations, grading details, erosion controls, stormwater reports, and authority responses are separate deliverables. This lets the owner see which cost belongs to engineering and which belongs to data collection or construction. A written responsibility list also reduces the chance that two consultants assume the other is designing a critical connection.
