A topographic or site survey maps the elevations and visible features a design team needs to understand how a project fits the land. It is common before an addition, retaining wall, drainage correction, new structure, driveway change, or complex site plan. It is not interchangeable with a boundary-only survey.
What it may show

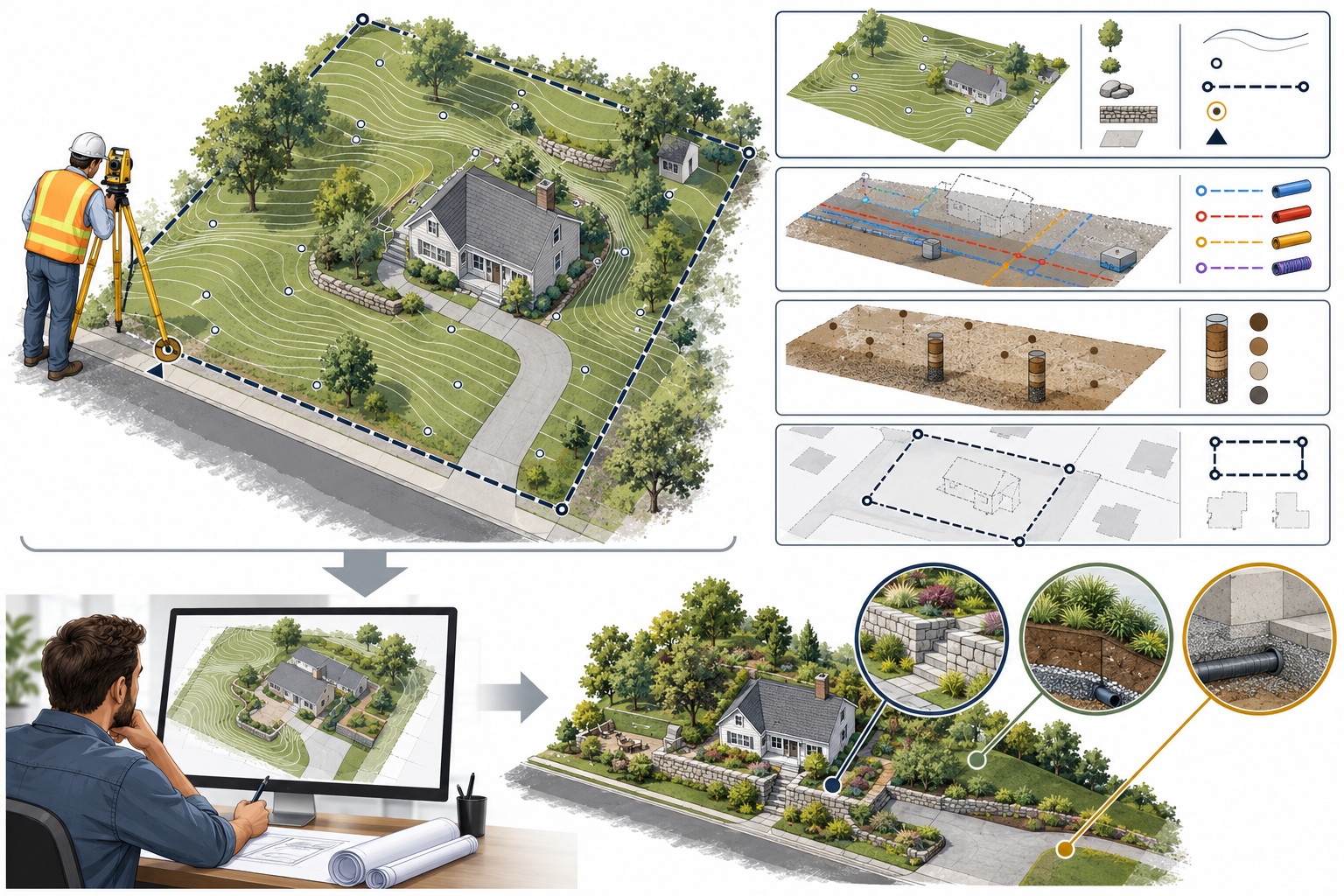

A survey can locate contours, spot elevations, buildings, walks, driveways, walls, visible utility features, trees, drainage structures, access points, and other items requested by the designer or civil engineer. The actual list should be written into the proposal. Underground utilities, easements, soil conditions, and hidden drainage are often separate questions.
The design team may also need a boundary, right-of-way, benchmark, coordinate system, or specific vertical datum. A survey that omits one of those can be unsuitable for the permit or engineering package even when it is accurate for its stated scope.
Why site surveys cost differently
The main drivers are research, field time, access, terrain, vegetation, structures, required accuracy, number of points, drafting, certification, travel, and revisions. A compact clear lot can be quick to map. A wooded, steep, occupied, or heavily altered site may need more setup and interpretation.
An older survey can be a useful starting point, but the designer must decide whether it is current enough. New construction, grading, property changes, missing benchmarks, or a changed design may require an update. Ask what will be verified rather than assuming an old plan is still complete.
Should boundary work be included?
Sometimes. A topographic survey can use an existing boundary survey, include limited property research, or be combined with a boundary determination. Those are different scopes. Ask whether property corners are being located, whether lines are being certified, and whether the surveyor will resolve conflicting record and field evidence.
Do not use a topographic plan as proof of legal ownership or property lines unless it expressly provides that service. Do not use a boundary plan as a substitute for the elevation and site-feature data required for drainage or building design.
How to request comparable quotes
Give each surveyor the concept plan and a feature list. Ask:
- What area will be surveyed, including off-site connections if needed?
- Which elevations, contours, structures, trees, walls, utilities, and drainage features are included?
- Is boundary research or monument recovery included?
- Are files delivered as CAD, PDF, or another format?
- Who sets the benchmark and vertical datum?
- Is the plan signed or sealed for a named permit or engineering use?
- What is excluded, including utility locating, geotechnical work, and easement research?
- What field conditions or revisions create extra charges?
Match the survey to the design stage
An early concept may need enough elevation information to compare building locations and identify obvious grading constraints. A permit or engineered design may require a more complete feature set, boundary information, a benchmark, and a specified datum. Construction layout is a later service that marks approved elements in the field. These can use related information, but they are not automatically part of one survey fee.
Ask the architect or civil engineer to mark the area and features they need before requesting bids. A surveyor may need to include the driveway, swales, retaining walls, drainage structures, adjacent grades, or a connection to the street. A survey limited to the proposed building footprint might not answer how water reaches or leaves the site. Conversely, surveying the entire property in detail may be unnecessary if the authority and design team need only a focused portion.
Understand the field-work assumptions
The fee proposal should explain the assumed access, vegetation, building occupancy, season, and existing records. Surveying around a fenced or heavily planted lot can take more time than a clear site. A sloped yard or a project near a property line may require additional points or careful monument research. If a crew cannot access a portion of the site, ask how that limitation will be shown and whether a later visit is likely.
Give the surveyor the site plan, prior surveys, title information, visible utility records, and a list of the design questions. Do not imply that a utility map proves the exact location of a buried line. If underground utility location is needed, ask which separate service will provide it and how the design team will use the result.
Compare deliverables and downstream use
Compare whether the quote includes research, field observations, mapping, CAD files, signed plans, area calculations, revisions, and construction staking. Ask whether the surveyor will certify a boundary or only use a provided boundary as a design reference. Confirm how updates are priced if the architect changes the footprint or the civil engineer requests more elevations.
If the survey will support permit review, ask the authority whether a specific certification, site-plan format, date, or level of detail is required. If it is for drainage design, ask the civil engineer what benchmark and feature information are needed. A survey can be accurate for its stated scope yet unusable for a different authority or discipline.
Compare the survey scope against a real project
For a small addition, the design team may need enough information to locate the existing building, setbacks, grade transitions, trees, walks, and drainage structures around the proposed work. A steep-site project may need more elevations and off-site context. A drainage correction may require information along the route where water enters or leaves. These examples help frame the request, but the surveyor and design professional should specify the actual points and accuracy.
Ask the design professional to mark the survey boundary on a plan. Include the proposed footprint, access route, nearby walls, visible utilities, and any known drainage issues. If the survey needs to extend beyond the lot, confirm access and permission before scheduling. A field crew cannot reliably map areas it cannot enter.
Make the deliverable usable by the next professional
Confirm the file type, units, coordinate basis, vertical datum, benchmark, contours or spot elevations, and naming conventions. Ask whether the drawing includes a legend and date and distinguishes observed features from records or owner-supplied information. If a civil engineer will prepare a grading plan, ask that engineer to confirm the surveyor’s proposed feature list before field work.
Clarify whether the survey is sealed or certified for the stated use, whether boundary lines are included, and which visible utilities are mapped. Do not infer underground utility locations from surface features alone. If the design depends on buried services, arrange the appropriate separate locating process and identify how its results will be recorded.
Plan for updates and field discrepancies
The survey is a snapshot. If grading, demolition, excavation, or construction changes the site after measurement, ask whether an update is required before a new permit or design decision. If field evidence differs from a recorded plan or old survey, ask the surveyor to explain the difference and whether additional records research is needed.
Request a change price for a revised building footprint, added off-site area, or newly identified feature. If the design changes before submission, confirm which parts of the original survey remain usable. This can help avoid paying for a full remobilization when only a limited update is required, while preserving the accuracy the authority needs.
Check the accuracy needs with the design team
Ask whether the design needs contours, spot elevations, building floor elevations, visible utility locations, road grades, or a benchmark tied to a named datum. These requirements are not interchangeable. A surveyor can quote a more useful feature set when the civil engineer or architect specifies how the information will be used.
If the purpose is an early concept, a less detailed pickup may be enough to compare locations. If the purpose is engineered grading or permit submission, the authority and designer may need more complete measurements and certification. Avoid paying for a high-detail product until the team can explain its use, but do not substitute a rough map when a precise elevation controls the design.
Budget for a changed project boundary
If the design adds a driveway, retaining feature, service route, or off-site connection, ask whether the survey limits need to expand. Confirm access rights for any area outside the owner’s property and identify whether the fee includes a second crew visit. Mark changes on the survey plan rather than relying on a verbal update.
Relationship to engineering and permits
A topographic survey supplies information; it does not design drainage, prove soil capacity, or obtain a permit. A civil engineer may use it for grading or stormwater work. A structural or geotechnical professional may need additional information. The permit authority may have its own checklist. Toronto and British Columbia guidance both show that local submission requirements control.
Budget the survey as a project input and confirm its required scope before field work begins. Paying for the right feature set once is usually more economical than ordering a cheap survey and discovering that the design team cannot use it.
Reduce avoidable survey rework
Provide the surveyor with the latest site plan, property description, available utility records, and a list of planned improvements. Identify whether the design team needs spot elevations, contours, building floor elevations, trees, retaining walls, drainage features, or visible utility structures. Ask how the deliverable will be referenced and whether the engineer can use its format. Do not assume records show the position or depth of buried services; separate locating work may be needed. If the project changes after the field visit, ask the surveyor which revisions can be made from office records and which require another site visit.
