Shower Waterproofing Rebuild Cost
When a shower waterproofing assembly has failed, replacing only the visible tile may leave the failure in place. The rebuild budget depends on how far the system must be opened, what substrate or framing was affected, how the new pan and drain connect, and how finishes are restored.

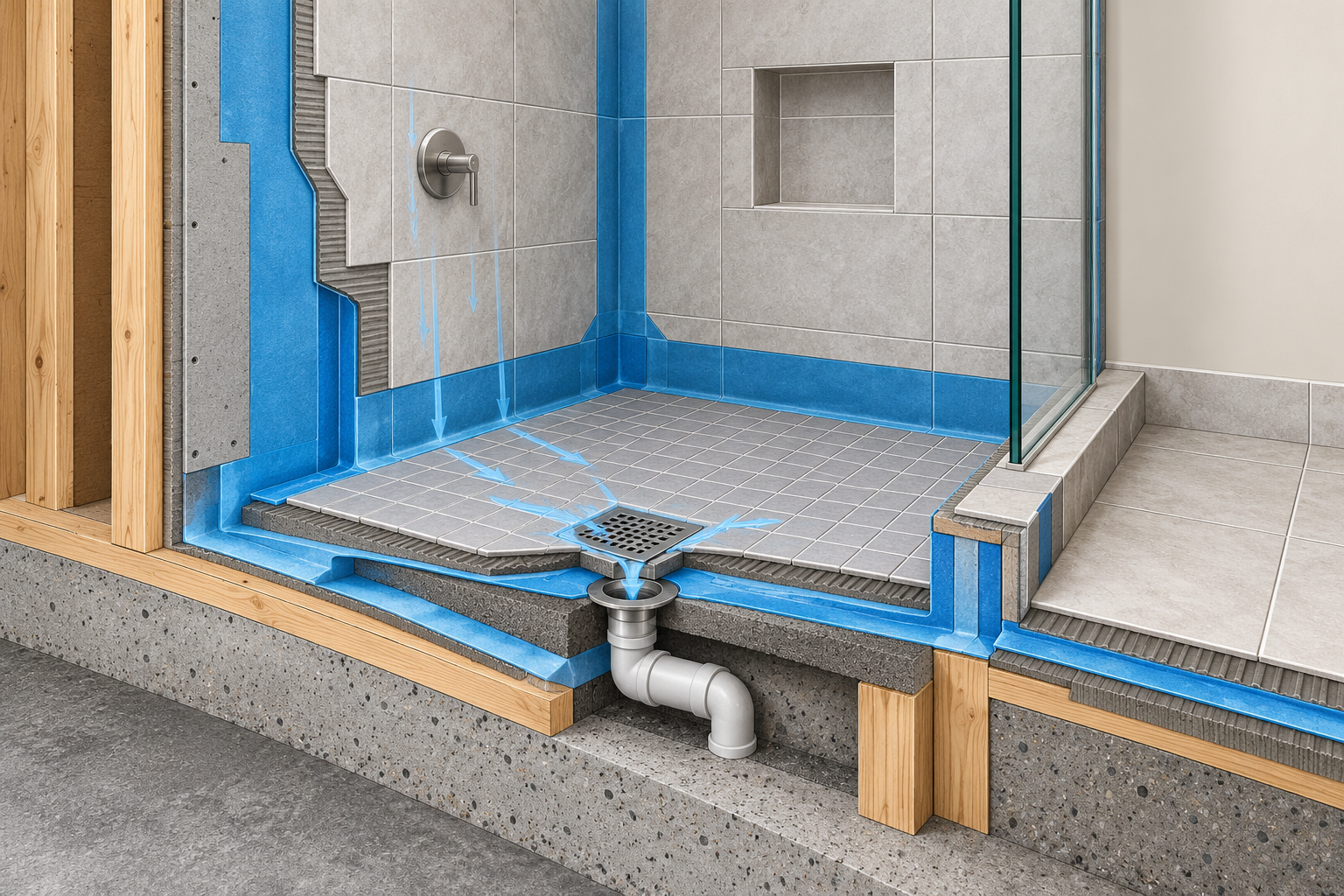

Waterproofing is behind the finish
Tile and grout are not the complete water-control system. The Schluter handbook documents one manufacturer system in which membranes, seams, corners, penetrations, drains, substrates, and transitions work together. That evidence applies to the products and method it documents, not to every shower. Ask the installer to name the proposed system and its limits.
What a rebuild quote should show
- protection, access, and demolition depth;
- tile or surround removal and disposal;
- substrate and framing inspection or replacement allowance;
- pan or base, drain, wall system, membrane, seams, corners, and penetrations;
- niches, benches, curbs, transitions, and enclosure interfaces;
- plumbing, electrical, ventilation, and access below where affected;
- finish tile, grout, trim, door, cleanup, and restoration.
Do not accept “waterproofing included” as the complete description. Ask which walls and floor are covered, how the drain is integrated, what happens at the tub or floor transition, and when the assembly is checked before tile conceals it.
Why the demolition range is wide
The installed system may be accessible from one side or embedded behind tile and backer. A failed pan may require less wall removal than a failed membrane, but the new connection still has to be credible. A niche, seat, control, pipe penetration, or door opening adds another interface. Damaged subfloor or framing can turn a wet-area job into a larger room repair.
Build the budget as simple, likely, and difficult cases. The simple case has a known failure and accessible work. The likely case includes surrounding removal, new substrate, and finish restoration. The difficult case includes concealed damage, access below, layout changes, or coordination with plumbing and structural work.
Repair or rebuild?
A localized seal repair can be reasonable when the failed point is established and the assembly remains sound. A rebuild is more defensible when the waterproofing layer, pan, substrate, or multiple interfaces are involved. Regrouting and retiling should not be represented as repairs to a failed waterproofing system.
Use an allowance with quantities, photographs, unit prices, and an approval threshold. A professional assessment is appropriate when the source or failed layer is uncertain. The goal is a durable wet-area scope, not the smallest demolition line.
