Installing Modern HVAC or a Heat Pump in a Historic House Without Major Fabric Damage
Installing modern HVAC in an old house is a building-integration project. Equipment, ducts, grilles, refrigerant lines, condensers, drains, controls, electrical service, and access can affect historic rooms and exterior views. The right system depends on the load, climate, layout, existing distribution, utility capacity, and the features you need to protect.
Start with the building, not the equipment catalog
Before comparing a heat pump or HVAC package, establish the building load, existing system, comfort problem, envelope condition, room layout, service capacity, and preservation priorities. An oversized or poorly routed system can increase cost and reduce comfort. Air leakage, windows, insulation, shading, and ventilation may change the equipment requirement, but they should not be altered blindly in a traditional assembly.
Map possible equipment locations, ducts, refrigerant or hydronic routes, condensate, electrical work, controls, grilles, registers, and exterior units. Attics, basements, closets, additions, and existing chases may provide lower-impact paths. Historic rooms, masonry, decorative plaster, and visible facades may make a technically simple installation restoration-intensive.

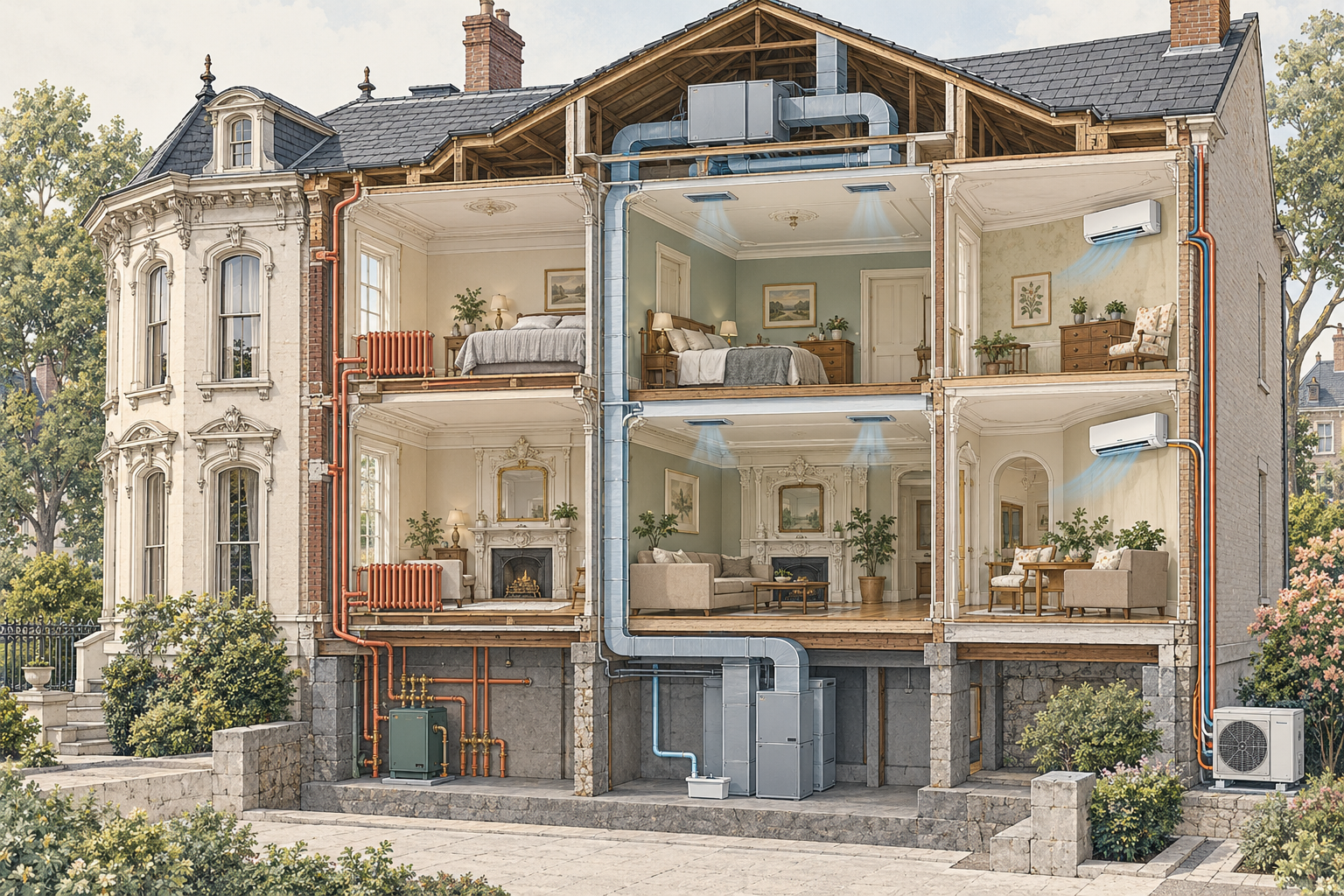

Compare distribution options
Reuse existing distribution may reduce access and finish work when its condition, capacity, and layout are suitable. New ducted distribution can provide room-by-room delivery but may require chases, soffits, floor or ceiling openings, and restoration. Ductless or compact systems can reduce some concealed routing but add visible heads, line sets, exterior equipment, controls, and possible approval concerns. There is no universal best choice for a historic house.
Ask how each option affects service access, noise, comfort balance, humidity, condensate, future replacement, and character-defining elements. A less visible route is not automatically better if it creates moisture, maintenance, or code problems. A visible element is not automatically unacceptable if it is reversible, appropriately located, and approved where required.
Include electrical and exterior consequences
Heat pumps and modern HVAC can require electrical capacity, disconnects, controls, condensate management, exterior supports, penetrations, and equipment clearances. Fuel changes can affect chimneys, combustion safety, ventilation, and abandoned equipment. Roof, wall, and foundation work can overlap with other projects; coordinate it before final finishes are restored.
Define performance and preservation targets
Write down the rooms to serve, comfort problem to solve, cooling or heating expectation, noise tolerance, visible equipment that is acceptable, and features that must remain undisturbed. A preservation target can be “no new grilles in the principal stair hall” or “retain the historic radiator covers”; it should not be reduced to a vague request for a hidden system. The HVAC designer can then test routes against a real brief.
Ask what baseline information supports the equipment selection and what remains uncertain. Load, climate, insulation, air leakage, occupancy, existing distribution, and electrical capacity can all affect the result. If the building assessment is incomplete, price that assessment and state what decision it unlocks before equipment is ordered.
Compare distribution paths as complete assemblies
For each option, map the equipment, supply and return paths, grilles or heads, refrigerant or hydronic lines, condensate, electrical route, exterior unit, controls, service clearances, and restoration. A ducted option may require chases, soffits, floor or ceiling access, and careful repair of plaster or trim. A ductless option may reduce some concealed work but introduce visible heads, line sets, exterior penetrations, and different room-to-room control.
Ask how the route crosses masonry, decorative plaster, original flooring, built-ins, attics, basements, and additions. Request a visual location plan and a written finish assumption. “Minimal fabric damage” should identify which fabric is protected, which access is permitted, and how the repair will be finished.
Coordinate the installed scope
Keep HVAC, electrical, roofing, plumbing, insulation, carpentry, preservation review, and finish restoration aligned before closing surfaces. A condensate route can affect plumbing; an exterior unit can affect a facade or foundation; a new electrical requirement can affect the rewire; and attic or wall insulation can change moisture and service access. Resolve the interface even when one contractor is not responsible for the neighboring work.
Include commissioning, controls, balancing, access panels, filters, condensate management, weather protection, and owner documentation. Ask what happens if the existing system or wall assembly differs from the assumptions. The change process should identify who makes the technical decision and how added restoration is measured.
Plan commissioning and future service
An installed system is not complete when the equipment is connected. Require a handoff describing the equipment, controls, maintenance access, filters, shutoffs, drainage, and any areas that must remain open for future service. Ask the designer or installer what performance will be checked at completion and what limits remain because of the old building.
Future replacement should be part of the preservation decision. A route that is easy to install but impossible to service without removing original trim can create a later cost. Conversely, a visible but reversible access panel may be a better long-term compromise. Record the accepted visible changes and maintenance responsibilities with the final scope.
Keep technical and preservation decisions separate
The preservation question is where equipment, grilles, lines, penetrations, and access can go without unacceptable loss or visibility. The technical question is whether the proposed system can meet the load, operate safely, manage condensate, satisfy electrical or mechanical requirements, and be serviced. A preservation specialist cannot certify HVAC performance, and an equipment quote cannot decide whether a historic feature is significant.
Ask for the drawings, calculations or design basis, approval path, and finish assumptions that connect the two decisions. If a preferred route cannot meet the technical requirement, document the next option rather than forcing the system into a damaging or unserviceable location. If the technical design is sound but visibly different, document the accepted change before construction.
Compare first cost with future access
Include service clearances, filters, controls, condensate, replacement routes, roof or exterior access, and future removal. A concealed installation may preserve the initial appearance but require later demolition. A reversible visible installation may cost more in design or review but reduce future access damage. Compare those lifecycle consequences with the local installation scope and keep equipment, restoration, and owner upgrades separate.
Confirm the delivered system
At handoff, compare the installed routes, equipment locations, controls, service access, and finish restoration with the approved design. Record any deferred work, remaining visible change, and maintenance requirement. The owner should know both what the system does and which old-house limitation remains.
Make the handoff match the design
At completion, compare installed equipment, routes, grilles or heads, condensate, controls, service clearances, exterior equipment, and restoration with the approved scope. Record any substitution or deferred item and the professional who accepted it. This matters in a historic house because a late route change can alter both performance and character.
Give the owner the maintenance, filter, access, warranty, and future-removal information. Keep photographs of concealed routes and note which finishes or features should be protected if another trade returns.
Choose the route with the full handoff in mind
The preferred option should identify who designs the system, who confirms electrical or mechanical requirements, who obtains approvals, and who restores the historic surfaces. Ask for the route, service access, condensate, controls, and future-removal plan in the same comparison as the equipment. A low equipment figure is not a low project cost when the interfaces are missing.
Compare the proposal with the building brief
Before approval, confirm that the selected equipment, route, room coverage, service access, sound or visibility assumptions, electrical work, and restoration still meet the original brief. If the installer substitutes equipment or moves an exterior unit, revisit the design and approval questions. A change that looks small in a catalog can be significant in a historic room or facade.
Keep the technical design, preservation decision, and owner preference visible as separate parts of the closeout. This gives a later service professional enough context to maintain the system without assuming that the old building has the same constraints as a new installation.
Confirm the final route
Keep the equipment, routes, service access, restoration, approval assumptions, and deferred work in the closeout. A late substitution should be reviewed because it can alter performance, visibility, or future access.
Build a local estimate
No reliable national USD or CAD range applies to this specialized historic-home work. Request a dated local proposal that separates investigation, access, protection, materials, specialist labor, permits or review, restoration, and future maintenance. State the condition, area, and assumptions covered by each option.
Compare complete scopes in the market where the work will occur. Keep confirmed work, allowances, and owner-selected upgrades separate, and do not convert a price mechanically between U.S. and Canadian markets.
