Crawl Space Drainage System Cost
A crawl-space drainage system collects and routes water; it does not simply dry the space by covering the ground. The scope may include a perimeter trench, stone, pipe or channel, a sump basin and pump, discharge, access work, and restoration before encapsulation or insulation is considered.
What changes the estimate
- crawl-space height and how workers and materials can enter;
- partial versus full perimeter and the length of trench;
- soil, groundwater, debris, and existing concrete or footings;
- drainage-pipe or channel design and connection to a sump;
- electrical, discharge, lid, and maintenance access;
- liner, dehumidification, insulation, or damage-related work added later.
Published crawl-space drainage prices are not standardized. Broad specialist repair figures can bundle grading, gutters, drainage, encapsulation, or restoration, so no comparable universal range is presented here. Ask for measured scope and unit assumptions instead of accepting a generic square-foot total.
Drainage before enclosure
Ground cover can control soil vapor, but DOE says soil can also introduce liquid water. Standing water should therefore be investigated before a liner or dehumidifier is sold as the primary remedy. The Government of Canada distinguishes surface-water French drains from foundation-level weeping tiles; the dominant work may belong to site drainage when water is arriving from outside the crawl space.
Quote checklist
Confirm the water source, trench location, collection path, sump and discharge, concrete or soil restoration, pump and power, access constraints, and exclusions for plumbing, mold, pests, structural damage, and encapsulation. A drainage system should leave a serviceable path for later inspection.
Start with the source and destination
Before pricing trenching, ask where water enters and where the system will send it. Water may arrive from roof runoff, site grading, a window well, a foundation wall, groundwater, plumbing, or soil vapor that condenses. A crawl-space perimeter drain can collect water that reaches the trench, but it cannot correct every exterior source or replace a plumbing repair.
The destination may be a sump, an approved gravity outlet, or another site-dependent arrangement. A route without a reliable destination is not a complete drainage system. Ask how the system behaves during heavy rain, power loss, freezing weather, blockage, and maintenance. The Government of Canada distinguishes surface-water French drains from foundation-level weeping tiles; the proposal should make clear which type of work is intended.
What drives crawl-space access cost
Low clearance changes labor, material handling, excavation, and safety. Measure available height and note piers, posts, ducts, wiring, plumbing, debris, insulation, pests, standing water, and the route from the access door. Ask whether the quote includes removing and replacing insulation, disposing of debris, protecting utilities, and restoring soil or concrete.

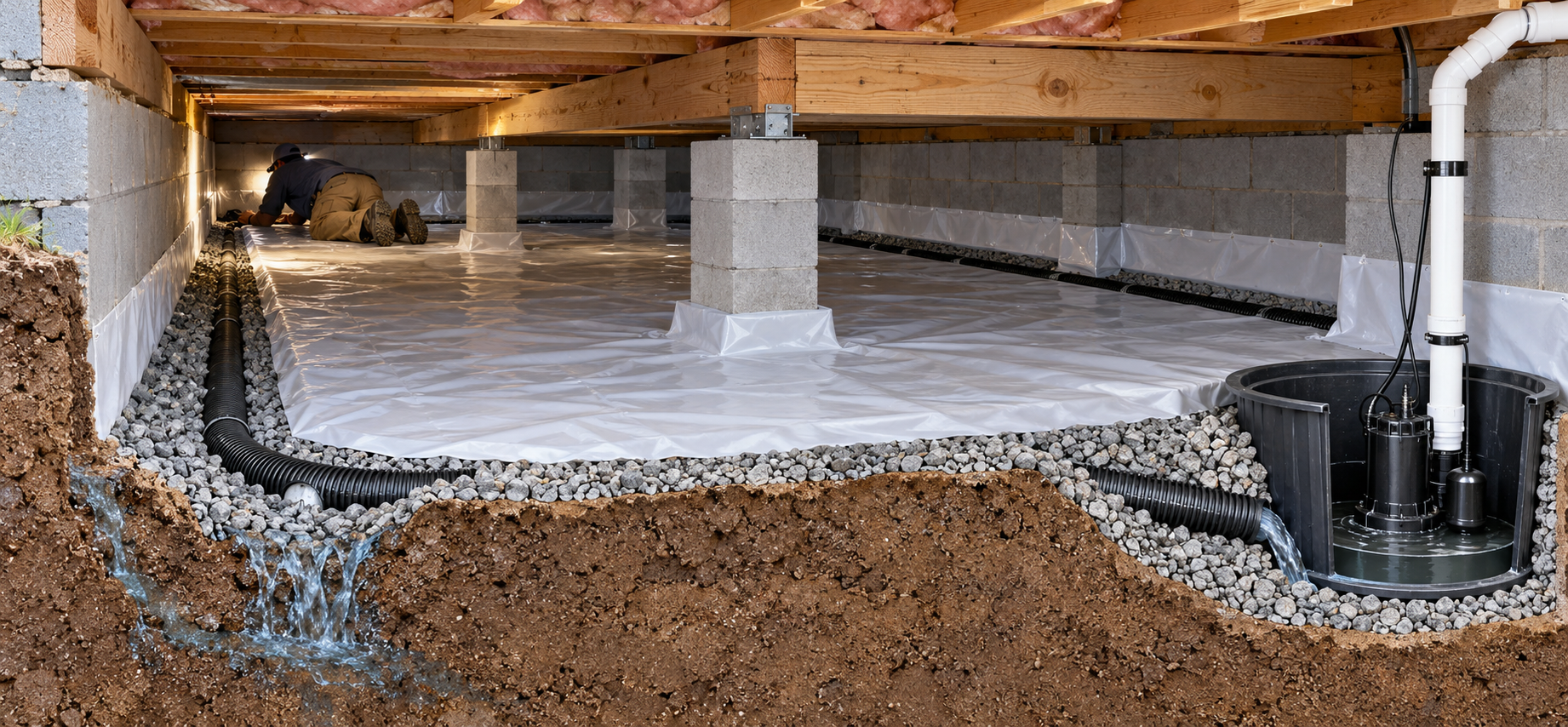

The trench may be partial or full perimeter. A partial route can be appropriate when the water path is documented, but the stopping points and transitions should be explicit. A full route still needs corners, cleanouts, inlets, filter or stone details, and an outlet. Ask for a diagram or measured plan rather than accepting a square-foot enclosure package.
Drainage components to price
Separate the collection pipe or channel, stone or filter material, trench preparation, sump or gravity destination, pump, check valve, discharge, power, alarm, backup, lid, cleanouts, testing, and restoration. If an enclosure or dehumidifier is proposed later, show how the drainage remains accessible. If an existing sump is reused, test its pit, pump, float, discharge, and power rather than assuming it is adequate.
The pump should be selected from inflow and total head, not a generic horsepower label. Electrical and plumbing requirements are local. Ask which permits or inspections apply and which professional is responsible for each connection.
Compare the project scenarios
- Surface-water correction first: grading, downspouts, window wells, or exterior drains are the dominant source.
- Localized crawl drainage: one area or route needs a measured collection detail and a defined outlet.
- Perimeter drainage and sump: recurring groundwater or multiple wet sections require a complete collection and pumping path.
- Drainage plus repair: wet insulation, damaged wood, pests, mold-like growth, plumbing, or structural conditions add separate work.
No universal crawl-space drainage price follows from the available evidence. Published specialist bundles can combine grading, gutters, drainage, encapsulation, pumps, and restoration. Ask for the site-specific quantities and a written change-order rule for hidden soil, water, utilities, or obstructions.
Handoff before enclosure
Photograph the trench, pipe, connections, basin, discharge, cleanouts, and service clearances. Test flow and the pump under safe conditions. Record what happens if power fails and how the homeowner will access the system. Correct bulk water before installing a liner, insulation, or dehumidifier. A drainage budget succeeds when it leaves a known path from water source to serviceable destination.
A change-order rule protects the decision
Low-clearance work often reveals buried utilities, footings, unexpected soil, groundwater, debris, or an existing connection that cannot be reused. Ask the contractor to list unit prices and the point at which work stops for approval. Require photographs or measurements before a changed condition is added. This is more useful than an unexplained contingency percentage.
Before comparing totals, ask whether the quote includes removal and disposal, concrete or soil restoration, pump and power, discharge, testing, and future access. If an enclosure or insulation follows, document the drainage first. The most defensible project is a measured correction that can be inspected after the crawl space is closed.
Distinguish water collection from enclosure
A drainage quote should not be made to sound complete by adding a liner or dehumidifier. The drain manages a liquid-water path; the liner limits soil contact; the dehumidifier manages air moisture. Each has a different failure mode and maintenance requirement. Ask the contractor to price them separately and explain the sequence.
If water arrives from outside the crawl space, compare site drainage, foundation drainage, and interior collection. If water rises through soil, ask how the collection route handles groundwater and where the pump discharges. If a plumbing source is possible, route that diagnosis separately. A trench can be well installed and still be the wrong first project.
A serviceable completion standard
At handoff, request photographs of the route, stone or filter material, connections, basin, discharge, cleanouts, and restoration. Ask how to test the system and what symptoms indicate a blockage, power problem, or source outside the collection area. Keep the route accessible under any later liner or insulation. The budget is complete when the homeowner can understand and maintain the path after the work is hidden.
What a good drainage proposal leaves behind
The homeowner should know the measured route, the location of every cleanout and basin, the discharge destination, the pump and alarm arrangement, and the maintenance interval. Ask who is responsible for testing after restoration and what condition permits the next enclosure or insulation stage. Record unresolved areas rather than assuming the completed trench solved the entire crawl-space moisture problem.
If the proposed route is partial, ask why it stops where it does and what evidence would justify extension. If it is full perimeter, ask how corners, transitions, footings, posts, and access constraints are handled. Clear boundaries make the cost and future repair path easier to understand.
Ask whether the trench changes footing conditions, crosses utilities, affects posts or piers, or requires work near a foundation wall. Ask how the contractor protects the crawl space during excavation and how debris, wet soil, and old material are handled. A drainage estimate should include the access reality of the space, not only the length of pipe.
If the route is connected to a sump, include the pit, pump, power, alarm, backup, discharge, and testing. If it uses gravity, identify the approved destination and seasonal limits. The homeowner should receive enough information to know whether later enclosure or insulation will block a component.
Ask for a final diagram and a test result before the access is closed. If the drain is partial, label its limits. If the route passes around footings or piers, document the transitions. A small record now can prevent a future contractor from assuming that the entire crawl-space perimeter was drained.
Keep the diagram with later liner, insulation, and equipment records. If water appears outside the drained route, the next professional can compare the new observation with the original boundary instead of starting from zero.
