Grab Bar Installation Cost: Placement, Blocking, and Retrofit Difficulty
A grab bar is a support device, not a decorative towel bar. Installed cost depends on where the user needs support, whether the wall can carry the load, the substrate and tile, waterproofing, access to framing, finish repair, and the product’s installation requirements. The visible bar may be inexpensive; making its anchorage appropriate is the important part.
Start with the movement
Place support around the activity: entering or exiting a tub or shower, rising or sitting at the toilet, changing direction, or steadying at a transition. The user’s height, reach, transfer, dominant hand, device, and caregiver assistance affect location. A bar positioned for a generic diagram may be poorly placed for the actual household.
Review the approach, the wet and dry surfaces, the door or curtain, controls, seat, and route. Adding a bar cannot compensate for a slippery floor, inaccessible entry, or a transfer that is otherwise unsafe.

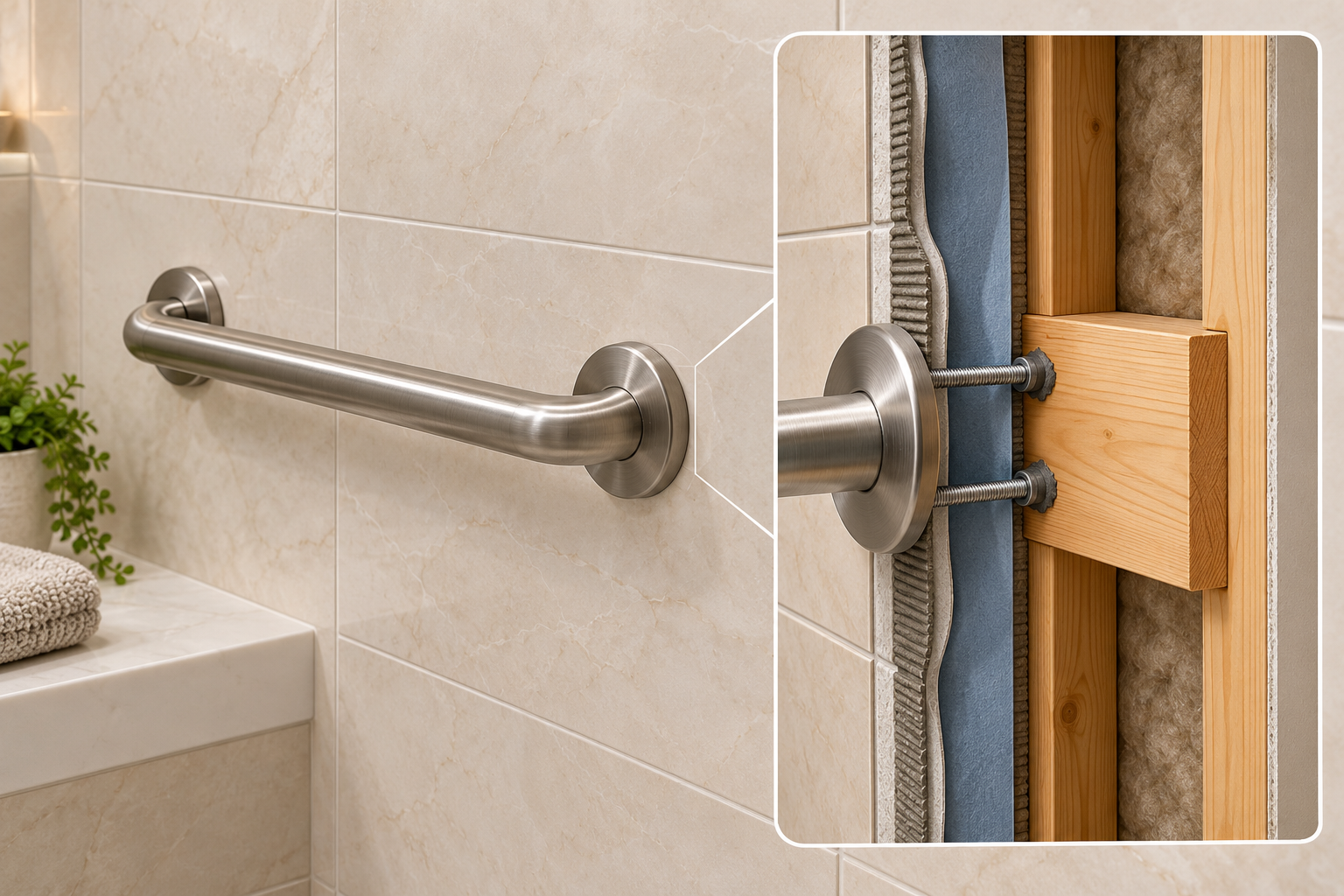

Why blocking matters
Blocking is reinforcement installed behind the wall finish. It can provide a known attachment area during a bathroom remodel. If it is absent, an installer must evaluate the studs, wall assembly, tile, backing, and an appropriate retrofit product. The attachment must follow the bar and manufacturer requirements.
Tile can make access and finish repair more difficult. A wall may also contain wiring, plumbing, or waterproofing that cannot be disturbed casually. A quote should identify whether the installer is working to exposed framing, using a documented retrofit method, or making an assumption that needs further review.
Do not provide or follow improvised fastening instructions. A bar that looks solid can fail if the wall, anchor, screw, or installation does not suit the load and substrate.
Cost scenarios
A straightforward installation may involve a suitable exposed or known support location with little finish work. A typical retrofit may require locating structure, drilling tile, sealing penetrations, and repairing or matching finishes. A difficult installation may require opening the wall, adding blocking, rebuilding waterproofing, moving utilities, or coordinating with a larger bathroom remodel.
Several small bars can be economically sensible when quoted as one visit, but do not add bars merely to increase the project. Group locations by actual use and ask for separate prices for a single installation, multiple installations, and wall-opening work. Specialist-market figures are directional U.S. observations; local U.S. and Canadian labor and materials vary.
During a bathroom remodel
The best time to plan future supports may be before tile and wallboard close. Ask the remodeler to show the proposed support zones and how they relate to the user’s movement. Record what reinforcement was installed, but do not assume every future product will fit every position.
Support planning should sit alongside the shower entry, seat, handheld control, toilet approach, sink, and turning route. A bar cannot be used if a door, curtain, cabinet, or fixture blocks the approach.
Product and installation questions
Ask for the bar’s intended use, dimensions, surface, mounting method, weight or support information, warranty, and manufacturer installation requirements. Ask the installer to identify the wall condition, waterproofing method, penetrations, finish restoration, and who verifies the completed work.
Do not confuse a temporary suction or tension product with a permanently anchored support. Temporary devices may be useful in some circumstances, but fit, surface condition, stability, rental, and user suitability are specific questions. A professional evaluation is prudent when a person depends on the bar for a transfer or when the wall condition is uncertain.
What the quote should include
Request separate line items for measurement, product, labor, blocking or wall opening, tile or surround work, waterproofing, caulking or sealing, finish repair, disposal, and travel or service minimums. Ask whether the quote includes more than the bar itself and whether the installer will document the location for future maintenance.
The project may belong inside a larger accessible bathroom remodel when the route, flooring, bathing space, or toilet approach also fails. It may be a focused job when the wall, route, and user need are clear.
Safety boundary
This article does not establish that any particular bar placement is safe for every user. It does not replace manufacturer instructions, an accessibility assessment, or professional installation. Support devices carry direct injury consequences, so the cheapest visible installation is not necessarily the lowest-cost decision.
Price the support as a complete, correctly anchored installation matched to the person, room, wall, and future use.
Start with the transfer or movement task
A grab bar can support standing, sitting, turning, repositioning, entering a shower, or recovering balance. Those tasks require different locations and may involve different loads and directions. Observe the person using the toilet, tub, shower, or entry route. Note where the hand can reach naturally, where the feet are placed, whether a caregiver needs room, and whether the user can grasp and release the bar without twisting.
Do not choose a location solely because it is close to a fixture. The bar, wall, floor, water, door, towel, and storage all affect the task. A vertical bar may help with a transfer or entry; a horizontal bar may support repositioning; a fold-down or specialized support may have different space and anchoring requirements. The right arrangement depends on the person and the installation system.
Wall and substrate questions
Ask what is behind the finished surface and whether the proposed anchor system is rated for the intended use. Tile, drywall, plaster, masonry, framing, and a hollow wall do not accept the same installation. A surface-mounted bar may require blocking or a tested specialty anchor. The installer should identify fasteners, backing, waterproofing penetrations, finish repair, and how the wall will be inspected before closing.
A bar that feels firm during a light hand test is not proof of a safe installation. Have a qualified installer confirm the assembly and follow the manufacturer’s instructions. If the wall cannot support the desired location, the correct response may be a different layout, a floor-to-ceiling support, a structural alteration, or a broader remodel—not a weaker attachment.
Include the surrounding route
Price the bar with lighting, slip control, a clear approach, door operation, shower controls, and any needed seat or handheld spray. A support can reduce one risk while leaving the user unable to reach it or exposed to another hazard. Check it after installation with the intended person and helper, and record any change in the task.
The practical test is whether the user can approach, grasp, transfer, and leave with less risk and less strain. Reassess when strength, balance, equipment, or assistance changes. A grab bar is a small construction item with a large safety consequence, so its scope deserves the same care as a larger accessibility project.
