Floor Insulation Cost for Cold Floors Over Unconditioned Space
Insulating a floor over a crawl space, garage, open foundation, or other unconditioned area is an assembly-specific project. A contractor may install insulation between joists, improve air sealing, add protection against wind washing, or recommend a different thermal boundary. The budget depends on access and existing conditions as much as on floor area.
Illustrative planning scenario
For 1,000 square feet of U.S. floor over a reasonably accessible crawl space or garage, a planning model might allow $2,500–$7,000 for air sealing, supported insulation, protection, and cleanup. Low clearance, damaged material, fire-separation work, or service conflicts can raise the scope. Canadian pricing should be quoted locally in CAD.
What the project is meant to solve
A cold floor can result from insufficient insulation, air movement through the floor plane, wind washing, an exposed foundation, a garage interface, or ducts and pipes in an unconditioned space. It can also reflect HVAC distribution or a surface-temperature effect rather than an insulation shortage. Confirm the cause before buying a material quantity.
Floor insulation can be appropriate when the space below remains outside the heated boundary. A crawl-space wall approach may be more coherent if the space is intentionally brought within the thermal boundary. The choice depends on the space’s moisture, ventilation, access, and design—not only the room above.
Cost layers
Separate the estimate into inspection, access, air sealing, insulation, support or protection, removal, and restoration. A flat open area may be straightforward. A low crawl space or garage ceiling with pipes, wiring, ducts, storage, and fire-separation details can be labor-intensive. Small projects may be dominated by setup and minimum charges.
The price may also change if the installer must remove damaged insulation, repair the floor, protect mechanical services, or coordinate with a garage or basement finish. A material-only estimate is not comparable with a complete installed scope.
Why air sealing matters
Insulation slows heat transfer but does not close every air path. Gaps at rim areas, penetrations, joints, and floor edges can allow cold air to move around or through the insulation. The contractor should explain the air-control layer and how it will be made continuous around plumbing, wiring, ducts, posts, and foundation transitions.
Do not cover wet or contaminated material. Water entry, drainage, pests, rot, mold, or hazardous materials must be assessed and corrected through the appropriate scope first. Below-grade water control remains a separate category when it is the dominant problem.
Materials and access
Fibrous insulation may suit regular joist bays when supported and protected correctly. Rigid or continuous layers may be useful where thermal bridging or wind exposure is important, but thickness and attachment affect clearances. Spray foam can provide air-control functions in some locations, yet product, fire, moisture, and assembly compatibility must be reviewed.
Access from a crawl space can cost more than working from an unfinished basement. A garage ceiling may need fire-separation treatment and finish restoration. An open foundation may expose pipes and wiring to weather and require a different design. Ask the contractor to state which side of the floor is accessible and what will be removed or restored.
U.S. and Canadian context
ENERGY STAR provides U.S. retrofit-oriented floor targets by climate-zone grouping. Those targets are not Canadian code and do not establish the correct detail for every assembly. Canadian and U.S. construction, climate, labor, and program conditions differ. There is no comparable national installed price in the available evidence; obtain local quotes in the local currency rather than converting between markets.
Comparing proposals
Ask whether each bid includes air sealing, insulation supports, vapor or ground-control assumptions, removal, access, service clearances, garage separation, cleanup, and a check after installation. Ask what happens if the installer finds moisture, damaged framing, inaccessible bays, or ducts that need work.
If the floor is cold because of a broader comfort problem, compare an envelope assessment with the cost of targeted floor work. Insulation may be the right intervention, but the best project is the one that corrects the actual heat and airflow path without closing a wet or serviceable assembly.
The completion check matters
Ask how the installer will confirm that the insulation is continuous, supported, protected from wind washing, and sealed at the perimeter. A visual check may be possible in an open crawl space or garage ceiling. A difficult space may require photographs, a written inspection, or a test of the comfort problem. The final check should also confirm that shutoffs, ducts, wiring, and pipes remain serviceable.
If the floor is over a garage, ask whether fire separation and air leakage at the garage boundary are part of the scope. If it is over a crawl space, ask what moisture and ground conditions are assumed. If it is over an open foundation, ask how wind and water exposure are handled. These questions make the price comparable and reduce the chance that a new layer creates a maintenance problem.
Floor insulation is a targeted building-envelope decision. It should be priced as a complete assembly with access and support, not as a loose material quantity.
Floor, crawl-space wall, and garage interfaces

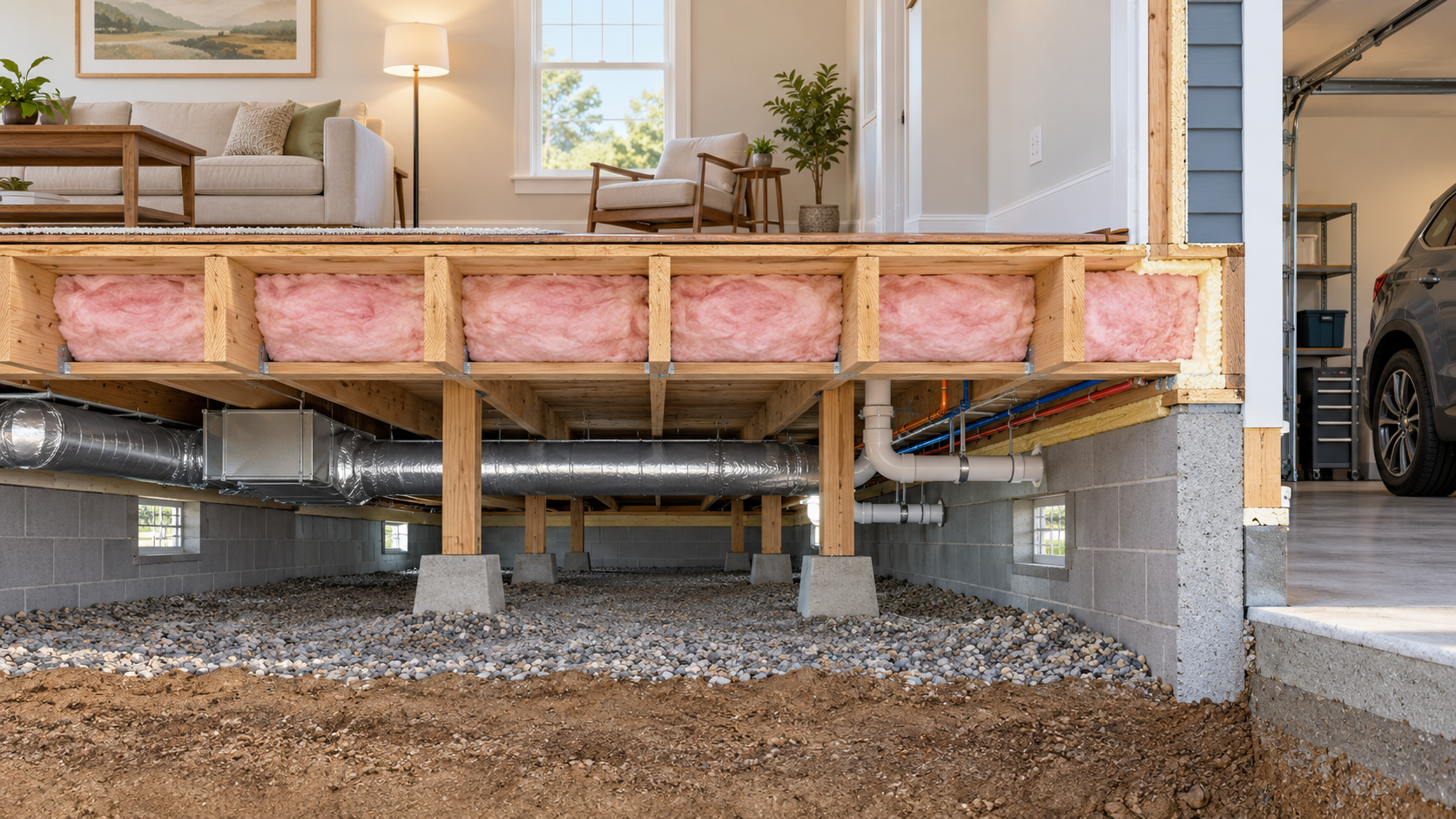

The correct boundary depends on what is below the floor and how that space is intended to behave. A floor over an open crawl space may need an air-sealed, supported insulation system. A floor over a garage may also need attention to the garage-to-house separation and penetrations. An open foundation, porch, or unconditioned addition can create wind exposure that defeats a poorly supported fibrous layer.
If the crawl space is being conditioned, wall or rim insulation may be more appropriate than treating only the floor. If a duct or pipe is in the space, service and freeze exposure need to be considered. If the complaint is limited to one room, check the local assembly and HVAC distribution rather than applying a whole-floor scope automatically.
What makes a floor project expand
Low clearance, stored items, ducts, wiring, plumbing, uneven framing, damaged insulation, and the need for supports can turn a material installation into a labor-heavy project. Air sealing at joist ends and penetrations may require separate preparation. Moisture or wind washing may require correction before insulation is installed. A quote should state whether supports, removal, disposal, access protection, and final inspection are included.
Do not close an assembly around unsafe wiring, wet framing, pests, mold, or unverified combustion or HVAC conditions. The floor work can be coordinated with crawl-space, garage, basement, or utility projects, but the dominant problem should determine the responsible trade.
Timing and value
Floor insulation can be more affordable while a basement ceiling, crawl space, garage ceiling, or floor finish is already open. It can be less attractive when the access requires removing a sound finished floor and the expected comfort improvement is small. Request a targeted option and a coordinated option, then compare the access cost avoided by doing the work now.
The practical budget is the one that explains the boundary, supports the insulation against wind and gravity, controls air at the edges, preserves service access, and states the moisture assumptions. A lower number for unsupported material may produce a higher lifetime cost if it sags or leaves the original air path untouched.
Compare the result with the complaint
If the stated problem is a cold floor, ask whether the contractor will document floor-surface conditions before and after work or explain another completion check. If the problem is energy use, ask how the floor scope fits the rest of the thermal boundary. If the problem is moisture, use the appropriate water-control investigation before insulating.
This keeps the owner from paying for a floor layer that cannot change the symptom. A floor can feel cold because of air movement, a duct problem, an unconditioned garage, a thermal bridge, or a room-level HVAC issue. The estimate should say which of those possibilities the proposed work addresses and which remain open.
Price access and protection
Under-floor work is shaped by height, soil, pipes, wiring, ducts, joists, pests, and the condition of the underside. Ask whether the contractor will inspect the floor framing first, how workers will move through the space, and how insulation will be supported against wind, animals, moisture, and future service work. A material allowance without an access and protection plan is not a complete floor-insulation estimate.
Clarify whether air sealing at the floor perimeter, rim joist, penetrations, and duct connections is included. If the floor is over a garage, porch, crawl space, or exterior exposure, the boundary and fire or finish requirements may differ. Keep photographs of the exposed work, the areas left untreated, and the support method. Those records matter because the installed insulation may be invisible from both the room above and the access opening below.
